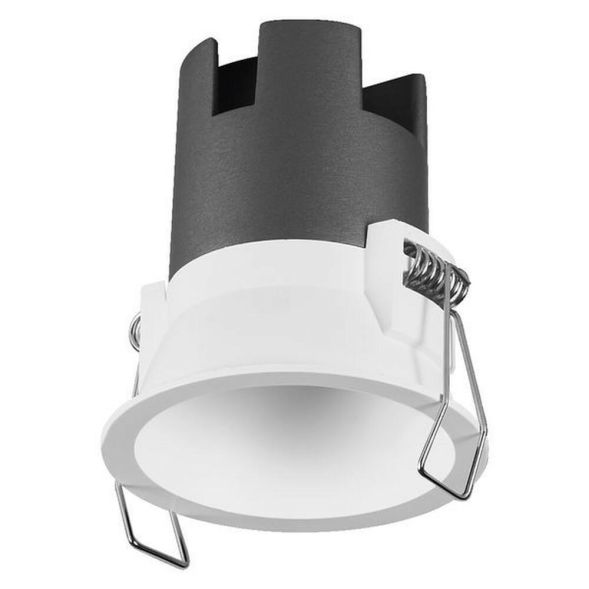

Recessed spotlights with integrated LEDs. Product features: Springs with soft silicone coating. Product advantages: Energy savings of up to 90% compared to halogen lamp spotlights. Easy installation and electrical connection thanks to tool-free connection terminals. Areas of application: Indoor applications. General lighting. Technical equipment: Connection box not included.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 400 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP20 |
| Impact resistance: | IK02 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -10 - 45 °C |
| Length: | 70.00 mm |
| Width: | 70.00 mm |
| Height/Depth: | 77.00 mm |
| Voltage type: | AC |
| Rated voltage: | 220 - 240 V |
| Max. System power: | 5.00 W |
| Luminaire luminous efficacy: | 80 lm/W |
| Power factor: | 0.5 |
| With control gear: | yes |
| Control gear: | EVG |
| Number of poles: | 2 |
| Type of wiring: | Termination |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light distributor: | other |
| Housing color: | white |
| Housing material: | aluminum |
| Suitable for ceiling mounting: | yes |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.16 |
| Weight unit: | KG |
| Outer diameter: | 70.00 mm |
| Reflector: | matt |
| Surface: | untreated |
| Luminous intensity: | 1150 cd |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Adjustability: | not adjustable |
| IFTTT support available: | yes |
| Luminous flux: | 400 lm |
| Rated service life L70/B50 at 25 °C: | 30000 h |
| Without Dimming function: | yes |
| Max. number of lights circuit breaker C16: | 250 |
| Max. Number of lights circuit breaker B16: | 250 |
| Installation diameter: | 65 mm |
| Short description: | LED SPOT RECESS TWIST PRO 70mm 5W 3000K White White |
| Socket: | without |
| Installation width: | 65 mm |
| Installation length: | 65 mm |
| Nominal current: | 50,000 mA |
| Energy efficiency class of the light source according to EU Directive 2019/2015: | G |
| Installation height/depth: | 100 mm |
Features
HAB
SPOT TWIST 70MM 5W 830 WT WT
Manufacturer
HAN
4099854089022
GTIN
4099854089022
Type of wiring
Diploma
Outer diameter
70.00 mm
Rated lifetime L70/B50 at 25 °C
30000 hours
Rated luminous flux according to IEC 62722-2-1
400lm
Rated ambient temperature according to IEC62722-2-1
-10 - 45 °C
Operating device
Electronic ballast
Width
70.00 mm
Installation width
65 mm
Installation diameter
65 mm
Installation height/depth
100 mm
Installation length
65 mm
Energy efficiency class of the light source according to EU Directive 2019/2015
G
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color rendering index CRI
80-89
Version
Without
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Housing color
White
Weight
0,16
Weight unit
kg
Height/Depth
77.00 mm
IFTTT support available
Yes
Short description
LED SPOT RECESS TWIST PRO 70 mm 5W 3000K White White
Power factor
0.5
Luminaire luminous efficacy
80lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
400lm
Light intensity
1150 cd
Light distributor
Other
Light distribution
Symmetrical
Length
70.00 mm
Max. number of luminaires Circuit breaker B16
250
Max. number of luminaires Circuit breaker C16
250
Max. system performance
5.00W
With operating device
Yes
With light source
Yes
Nominal voltage
Rated current
50,000mA
Surface
Untreated
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Number of poles
2
Reflector
Frosted
Impact resistance
IK02
IP protection)
IP20
Protection class
II
Voltage type
Adjustability
Not adjustable
Housing material
Aluminum
