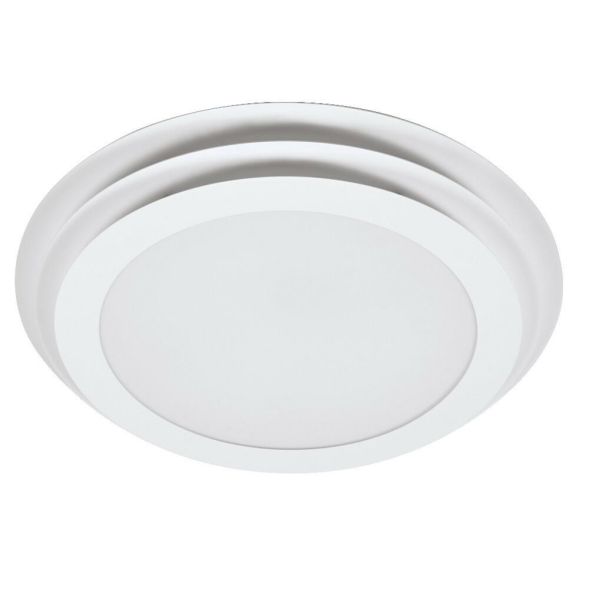

LED ceiling lights made of metal in an elegant design. Product features: Decorative home lighting. Ceiling light with advanced LED technology. Product advantages: Very homogeneous light. Elegant design. Areas of application: Indoor applications. Kitchen, living room, children's room or study.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 2140 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 40 °C |
| Height/Depth: | 70.00 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 38.00 W |
| Luminaire luminous efficacy: | 56 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| Control gear: | EVG |
| Connection type: | Plug terminal |
| Number of poles: | 3 |
| Type of wiring: | Terminal |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Housing color: | white |
| Cover material: | plastic opal |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 3.4 |
| Weight unit: | KG |
| Outer diameter: | 500.00 mm |
| Socket: | other |
| Grid design: | matt |
| Nominal current: | 163,000 mA |
| Light color: | white |
| IFTTT support available: | yes |
| Rated service life L70/B50 at 25 °C: | 30,000 h |
| Without dimming function: | yes |
| Max. number of lights circuit breaker C16: | 78 |
| Max. Number of lights circuit breaker B16: | 78 |
| Short description: | ORBIS SPIRAL LAYERS Round 38W White |
Features
HAB
ORBIS SPIRAL LAYER CL 500MM38W830WT
Manufacturer
HAN
4099854093296
GTIN
4099854093296
Connection type
Plug-in terminal
Type of wiring
Diploma
Execution of the grid
Frosted
Outer diameter
500.00 mm
Rated lifetime L70/B50 at 25 °C
30000 hours
Rated luminous flux according to IEC 62722-2-1
2140lm
Rated ambient temperature according to IEC62722-2-1
-20 - 40 °C
Operating device
Electronic ballast
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Housing color
White
Weight
3,4
Weight unit
kg
Height/Depth
70.00 mm
IFTTT support available
Yes
Short description
ORBIS SPIRAL LAYERS Round 38W White
Power factor
0.90
Luminaire luminous efficacy
56lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Max. number of luminaires Circuit breaker B16
78
Max. number of luminaires Circuit breaker C16
78
Max. system performance
38.00W
With operating device
Yes
With light source
Yes
Nominal voltage
Rated current
163,000mA
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
3
IP protection)
IP20
Protection class
I
Voltage type
Cover material
Plastic opal
