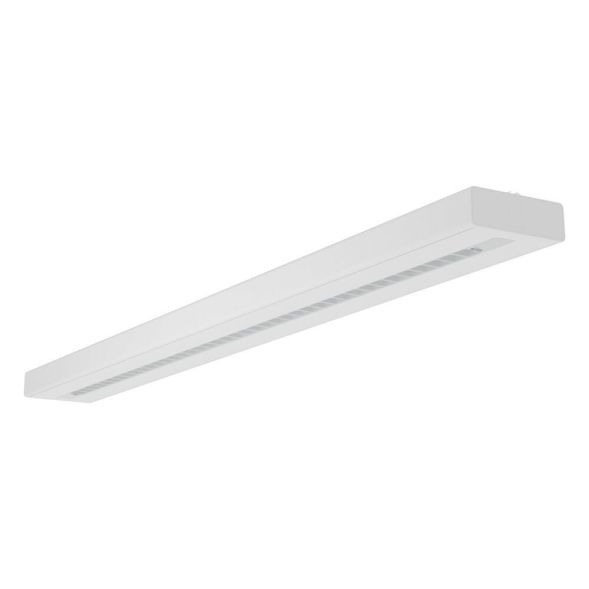

Surface-mounted luminaire for single or strip office applications with CRI90 and selectable wattage setting (Power Select - PS), 1200 mm. Product features: Minimalist LEDVANCE SCALE design in an extruded aluminum housing. Contains EVERLOOP: Convenient replacement of light source and LED driver. Can be connected to a seamless strip light with accessories (surface-mounted or suspended mounting). Suspended mounting with suspension set (to be ordered separately). Glow wire test according to IEC 60695-2-12: 850 °C. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Easy upgradeability of light source and driver (EVERLOOP design). Homogeneous light distribution and reduced glare (UGR 19) thanks to IndiviLED® optics. High technical performance with CRI90 and up to 130 lm/W. Very versatile thanks to a selectable wattage setting on the driver (Power Select - PS). Symmetrical and asymmetrical light distribution for a wide range of applications. High color consistency with SDCM 3. Easy installation. Low-flicker light thanks to special electronic ballast. Diverse installation options thanks to different accessories. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, educational institutions, public institutions. Individual application or in combination as a light strip. Direct lighting. Technical equipment: Suspension set available for pendant version (to be ordered separately). Inline, corner and infill connectors available as separate accessories. Through-wiring set available.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 5050 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 90-100 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP20 |
| Impact resistance: | IK06 |
| Protection class: | I |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 50 °C |
| Length: | 1210.00 mm |
| Width: | 125.00 mm |
| Height/Depth: | 43.00 mm |
| Voltage type: | AC |
| Rated voltage: | 220 - 240 V |
| Max. System power: | 40.00 W |
| Luminaire luminous efficacy: | 126 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| Control gear: | EVG |
| Connection type: | Plug-in terminal |
| Number of poles: | 5 |
| Type of wiring: | suitable for through-wiring |
| With Light source: | yes |
| Light emission: | direct |
| Light distributor: | Focus lens |
| Housing color: | white |
| Housing material: | aluminum |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for pendant suspension: | yes |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 3.2 |
| Weight unit: | KG |
| Grid design: | other |
| Nominal current: | 185,000 mA |
| Light color: | white |
| IFTTT support available: | yes |
| Rated service life L70/B50 at 25 °C: | 100,000 h |
| Without dimming function: | yes |
| Max. Number of lights circuit breaker C16: | 58 |
| Max. number of lights circuit breaker B16: | 31 |
| Adjustable luminous flux: | Levels |
| Replaceable operating device: | yes |
| Surface protection housing: | powder-coated |
| Brief description: | LINEAR INDIVILED DIRECT 1200 PS 1200 P 40W 940 PS WT |
