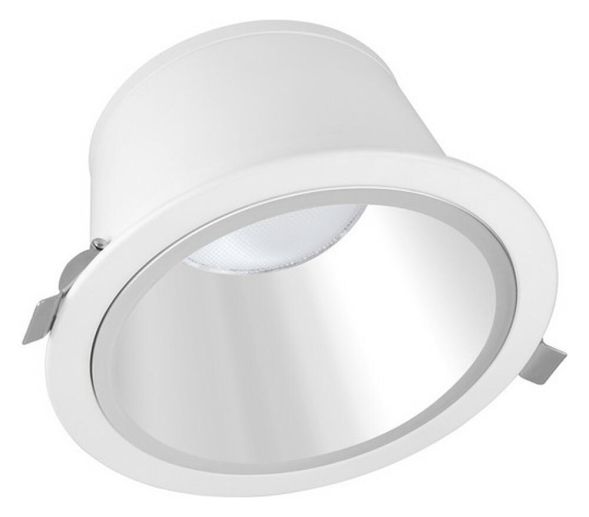

Downlight luminaires, Tunable White, 105 lm/W, tool-free installation, DALI-2 IoT technology. Product features: IoT-capable luminaire with DALI-2 technology. Color temperature adjustable via Tunable White: 2,700-6,500 K. Very high color rendering index Ra: > 90. Suitable for use on central battery systems in accordance with EN60598-2-22. Product advantages: Suitable luminaire for VIVARES DALI, VIVARES DALI HCL and other DALI-2 lighting controls. Enables individual Tunable White lighting solution in combination with compatible DALI-2 control devices. Supports LEDVANCE Human Centric Lighting in combination with the DALI PRO 2 IOT LDVV control device (4052899627079). Compatible with VIVARES CLOUD SERVICE for power consumption monitoring. Through-wiring possible with included cable clamp. Energy savings thanks to high system light output: up to 105 lm/W. External DALI-2 driver for increased flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Good glare control (UGR
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 2200 lm |
| Color temperature: | 2700 - 6500 K |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP20 |
| Impact resistance: | IK03 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 40 °C |
| Height/Depth: | 125.0 mm |
| Voltage type: | AC/DC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 21.00 W |
| Luminaire luminous efficacy: | 105 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| Control gear: | EVG |
| DALI dimming: | yes |
| DALI-2 dimming: | yes |
| Connection type: | Plug-in terminal |
| Number of poles: | 4 |
| Type of wiring: | Terminal |
| With Light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light distributor: | reflector |
| Housing color: | white |
| Housing material: | aluminum |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.65 |
| Weight unit: | KG |
| Outer diameter: | 175.00 mm |
| Reflector: | high gloss |
| Socket: | without |
| Surface: | powder coated |
| Suitable for recessed mounting: | yes |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Adjustability: | not adjustable |
| Luminous flux: | 2200 lm |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Max. number of luminaires circuit breaker C16: | 36 |
| Max. Number of lights circuit breaker B16: | 23 |
| Color temperature adjustable: | continuously |
| Replaceable operating device: | yes |
| Installation diameter: | 160 mm |
| Installation height/depth: | 125.0 mm |
| Brief description: | BIOLUX HCL DOWNLIGHT DALI DN150 S 21W TW DALI |
