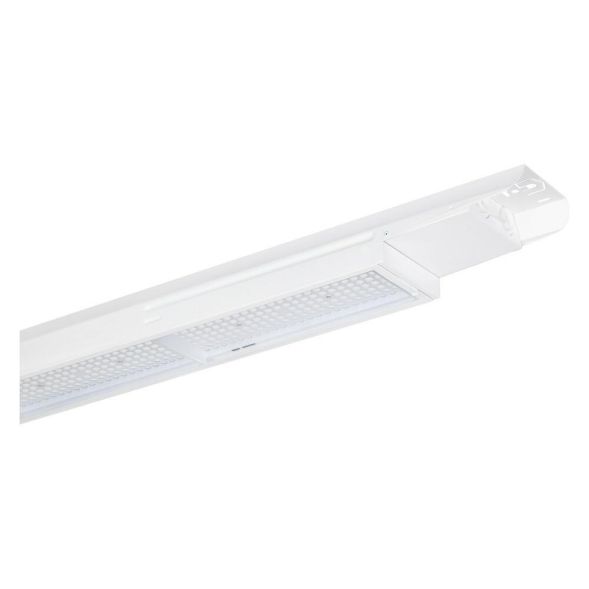

Low-bay luminaires with an attractive linear design, up to 160 lm/W with DALI-2 technology. Product features: DALI-2 certified. Suitable for emergency lighting systems on a central battery in accordance with EN 60598-2-22. Different luminous fluxes and opening angles for mounting heights from ~ 4 m to ~ 14 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 h. High color consistency: 3 SDCM. Product advantages: High compatibility thanks to DALI-2 validation. Economical thanks to high luminaire light output of up to 160 lm/W. Simple and quick installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal. Modern and robust design. 5-year guarantee. Areas of application: Replacement for luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industrial and storage areas. Discounters, supermarkets. Sports halls. Indoor sports facilities. Technical equipment: Suspension set, ball-proof cover and angle mounting set available as separate accessories.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 22000 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Protection class (IP): | IP23 |
| Impact resistance: | IK08 |
| Protection class: | I |
| Rated ambient temperature according to IEC62722-2-1: | -25 - 50 °C |
| Length: | 1527.00 mm |
| Width: | 115.00 mm |
| Height/Depth: | 65.00 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 140 W |
| Luminaire luminous efficacy: | 155 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| DALI dimming: | yes |
| Number of poles: | 7 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light distribution: | symmetrical |
| Light distributor: | diffuser lens/optics/panel |
| Housing color: | white |
| Weight: | 4.15 |
| Weight unit: | KG |
| Reflector: | without |
| Nominal current: | 650 mA |
| Light color: | white |
| Rated service life L70/B50 at 25 °C: | 100,000 h |
| Max. Number of lights circuit breaker C16: | 16 |
| Max. number of lights circuit breaker B16: | 16 |
| Short description: | LOW BAY FLEX 1500 DALI DALI P 140W 840 W |
