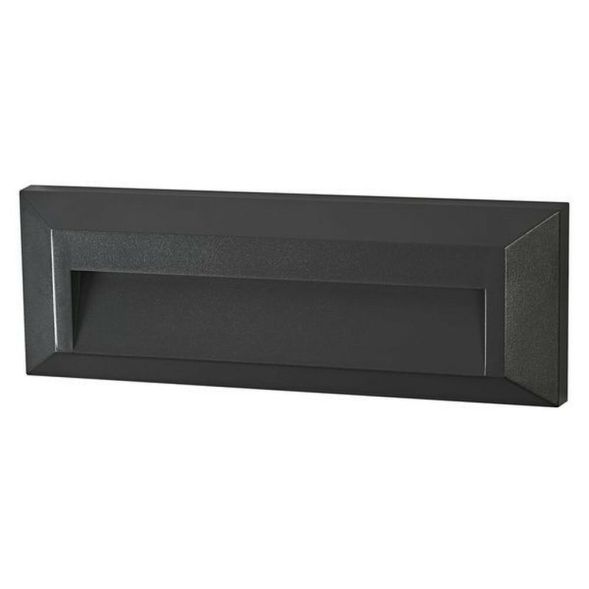

Wall lights with dark grey housing and protection class IP65. Product features: Durable housing materials. Protection class: IP65. Product advantages: Simple and quick installation. Areas of application: Decorative outdoor lighting. Illumination of facades. Entrance lighting. Terraces, balconies. Technical equipment: Complete assembly and connection accessories included.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 85 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP65 |
| Impact resistance: | IK06 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 45 °C |
| Length: | 230.00 mm |
| Width: | 27.00 mm |
| Height/Depth: | 80.00 mm |
| Voltage type: | AC |
| Rated voltage: | 220 - 240 V |
| Max. System power: | 1.90 W |
| Luminaire luminous efficacy: | 45 lm/W |
| Power factor: | 0.4 |
| Operating device: | EVG |
| Connection type: | Plug terminal |
| Number of poles: | 2 |
| Type of wiring: | Terminal |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | indirect |
| Housing color: | gray |
| Material of the housing: | plastic |
| Cover material: | opal plastic |
| Suitable for surface mounting: | yes |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.23 |
| Weight unit: | KG |
| Design of the grid: | other |
| Nominal current: | 20,000 mA |
| Light color: | white |
| IFTTT support available: | yes |
| Rated service life L70/B50 at 25 °C: | 30000 h |
| Without dimming function: | yes |
| Max. number of lights circuit breaker C16: | 51 |
| Max. number of lights circuit breaker B16: | 38 |
| Short description: | Endura Style IP65 Wall Ivan Dark Gray |
| Wall mounting: | yes |
| Energy efficiency class of the light source according to EU Directive 2019/2015: | E |
Features
Wall mounting
Yes
HAB
ENDURA STYLE IVAN WALL IP65 DG
Manufacturer
HAN
4099854217425
GTIN
4099854217425
Connection type
Plug-in terminal
Type of wiring
Diploma
Execution of the grid
Other
Rated lifetime L70/B50 at 25 °C
30000 hours
Rated luminous flux according to IEC 62722-2-1
85lm
Rated ambient temperature according to IEC62722-2-1
-20 - 45 °C
Operating device
Electronic ballast
Width
27.00 mm
Energy efficiency class of the light source according to EU Directive 2019/2015
E
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Housing color
Gray
Weight
0,23
Weight unit
kg
Height/Depth
80.00 mm
IFTTT support available
Yes
Short description
Endura Style IP65 Wall Ivan Dark Gray
Power factor
0.4
Luminaire luminous efficacy
45lm/W
Lamps
LED not replaceable
Light emission
Indirect
Light color
White
Length
230.00 mm
Max. number of luminaires Circuit breaker B16
38
Max. number of luminaires Circuit breaker C16
51
Max. system performance
1.90W
With light source
Yes
Nominal voltage
Rated current
20,000mA
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Number of poles
2
Impact resistance
IK06
IP protection)
IP65
Protection class
II
Voltage type
Cover material
Plastic opal
Housing material
Plastic
