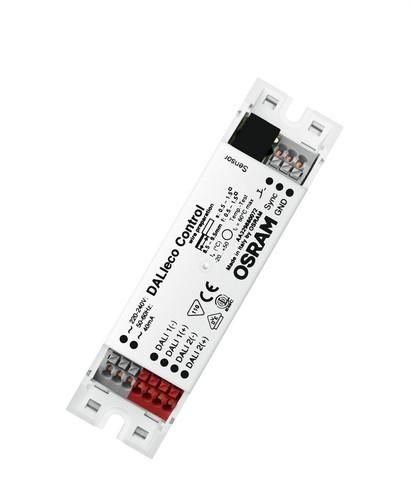

Product family advantages: VDE/VDE EMC-validated system. Simplified commissioning thanks to predefined function modes. Automatic and manual specification of the control setpoint. Product family properties: 2-channel light control device with DALI interface. Daylight-dependent control and presence-dependent light control. 100-hour burn-in function for fluorescent lamps. Operation via standard button or IR remote control. Outputs with adjustable offset. Outputs with electronically reversible overtemperature, short-circuit and overload protection. Connection of up to 4 DALIeco LS/PD LI or 6 DALI LS/PD LI sensors. Connection of up to 4 light and presence sensors via 4p4c plug system. Individual adaptability of the function parameters via IR remote control. Halogen-free polycarbonate plastic housing. Sensor connection via reverse polarity-protected 4p4c socket (RJ10). Areas of application: Office rooms. Classrooms. Training rooms. Corridors. Ceiling installation or independent installation via ECO CI KIT possible. Technical equipment: Suitable for up to 32 electronic ballasts.
| Property | Value |
| Version: | Control unit |
| Width: | 30.0 mm |
| Height: | 21.0 mm |
| Depth: | 118.0 mm |
