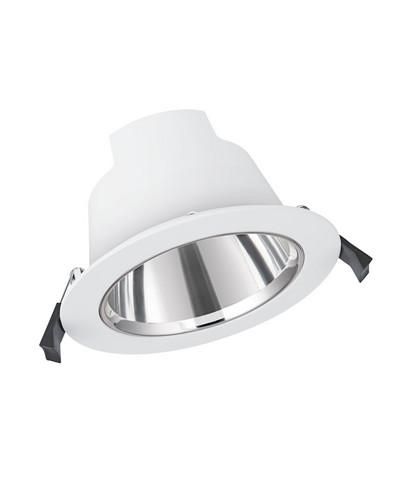

Downlights with adjustable white light color. Product features: Three light colors adjustable using a slide switch. Protection class: IP54. Connection box with plug-in terminal for tool-free connection. Through-wiring possible. Product advantages: Three light colors in one light: warm white, cool white and daylight white. Easy installation thanks to integrated driver. Easy installation with quick connection. 5-year guarantee. Areas of application: Direct replacement for lights with compact fluorescent lamps. General lighting. Bathrooms, kitchens and covered outdoor areas. Offices. Hallways. Entrance areas. Shops. Stairwells.
| Property | Value |
| Max. System power: | 13.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 1030 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP54 |
| Outer diameter: | 145.00 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| Installation height/depth: | 125 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 145.00 mm |
| Width: | 145.00 mm |
| Height/depth: | 82.00 mm |
| With motion detector: | no |
| Color temperature: | 3000 to 5700 K |
| Nominal voltage: | 100 to 277 V |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Installation width: | 130 mm |
| Installation length: | 130 mm |
| Luminous flux: | 1030 to 1210 lm |
| Cover material: | transparent plastic |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for Pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 45 °C |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 85 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
Features
Manufacturer
HAN
4058075104068
GTIN
4058075104068
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Beam angle
Wide beam 41-80°
Outer diameter
145.00 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
1030lm
Rated ambient temperature according to IEC62722-2-1
-20 to 45 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
145.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
130 mm
Installation height/depth
125 mm
Installation length
130 mm
Color temperature
3000 to 5700 K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
82.00 mm
Power factor
0.90
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
85lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1030 to 1210 lm
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
145.00 mm
Max. system performance
13.00 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
100 to 277 V
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
2
Reflector
Without
Impact resistance
IK03
IP protection)
IP54
Protection class
I
Voltage type
AC
Adjustability
Swiveling
Cover material
Plastic transparent
Housing material
Aluminum
