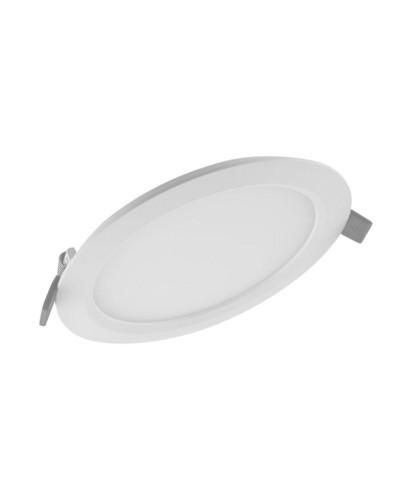

Flat downlights with integrated driver, round. Product features: Narrow visible frame. Connection box with plug-in terminal for tool-free connection. Light guide made of non-yellowing PMMA for a long service life. Product advantages: Very slim housing. Low installation depth. High luminous efficacy. Up to 60% energy savings (compared to luminaires that use compact fluorescent lamps). Very homogeneous light. Functional design. Easy installation with quick connection. Easy installation thanks to integrated driver. Areas of application: Direct replacement for luminaires with compact fluorescent lamps. General lighting. Public spaces. Stairwells. Corridors. Entrance areas. Shops. Technical equipment: Frame for surface mounting available as an accessory.
| Property | Value |
| Max. System power: | 12.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 1020 lm |
| Housing color: | white |
| Housing material: | plastic |
| Protection class (IP): | IP20 |
| Outer diameter: | 169.00 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 50.0 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 169.00 mm |
| Width: | 169.00 mm |
| Height/depth: | 30.00 mm |
| With motion detector: | no |
| Color temperature: | 6500 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Installation width: | 155.0 mm |
| Installation length: | 155.0 mm |
| Luminous flux: | 1020 lm |
| Cover material: | Opal plastic |
| Covering of the light with thermal insulation material possible: | no |
| Voltage type: | AC |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | untreated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 30000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 50 °C |
| Type of Wiring: | Termination |
| Power factor: | 0.50 |
| Number of poles: | 2 |
| Connection type: | Plug terminal |
| Luminous efficacy: | 85 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test in accordance with IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety in accordance with EN 62471: | RG0 |
Features
Manufacturer
HAN
4058075079076
GTIN
4058075079076
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Diploma
Outer diameter
169.00 mm
Rated lifetime L70/B50 at 25 °C
30000 hours
Rated luminous flux according to IEC 62722-2-1
1020lm
Rated ambient temperature according to IEC62722-2-1
-20 to 50 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
169.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
155.0 mm
Installation height/depth
50.0 mm
Installation length
155.0 mm
Color temperature
6500K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
30.00 mm
Power factor
0.50
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
85lm/W
Lamps
LED not replaceable
Light emission
Direct
Luminous flux
1020lm
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
169.00 mm
Max. system performance
12.00 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Untreated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
2
Reflector
Without
Impact resistance
IK03
IP protection)
IP20
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Plastic
