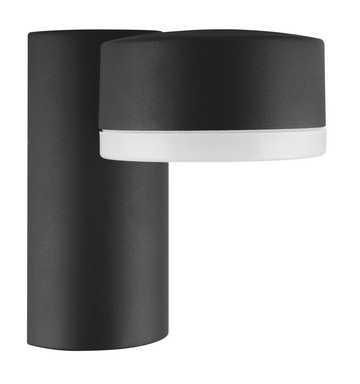

Lights with rotating head and direct light. Product features: Bright and functional LED outdoor lights. Protection class: IP54. Housing made of die-cast aluminum. Adjustable modules: 320° adjustment angle. Opal polycarbonate diffuser. Versions with white or dark gray housing available. Product advantages: Energy efficient thanks to LED technology. 5-year guarantee. Easy and quick installation. Homogeneous light emission. Areas of application: Outdoor areas. Illumination of facades. Entrance lighting. Gardens, balconies and other outdoor areas. Technical equipment: Complete assembly and connection accessories included.
| Property | Value |
| Energy efficiency class of the built-in lamp: | G |
| Length: | 135.0 mm |
| Width: | 90.0 mm |
| Height/Depth: | 140.0 mm |
| Max. System power: | 8.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 440 lm |
| With control gear: | yes |
| Protection class (IP): | IP54 |
| Protection class: | I |
| Nominal voltage: | 240 V |
| Voltage type: | AC |
| Color temperature: | 3000 K |
| With light source: | yes |
| Light source: | LED not replaceable |
| Material of the housing: | aluminium |
| Material of the cover: | plastic opal |
| Light distributor: | other |
| Impact resistance: | IK06 |
| Housing colour: | grey |
| Without dimming function: | yes |
| Rated ambient temperature according to IEC62722-2-1: | +40 °C |
| Colour rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Connection type: | other |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| With motion detector: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for Surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| Luminaire with limited surface temperature 'D-mark': | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in the device): | no |
| LED nominal current at constant current: | 66 mA |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge phase control: | no |
| Dimming leading edge phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Luminaire luminous efficacy: | 55 lm/W |
| Power factor: | 0.5 |
| Wiring type: | Termination |
| Number of poles: | 3 |
Features
Energy efficiency class of the permanently installed light source
G
Manufacturer
HAN
4058075074712
GTIN
4058075074712
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
Diploma
Execution of the grid
Frosted
Rated luminous flux according to IEC 62722-2-1
440lm
Rated ambient temperature according to IEC62722-2-1
+40°C
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Width
90.0 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
Gray
Height/Depth
140.0 mm
LED nominal current at constant current
66mA
Power factor
0.5
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
55lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Other
Light distribution
Symmetrical
Length
135.0 mm
Max. system performance
8.00W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
240V
Without dimming function
Yes
Number of poles
3
Impact resistance
IK06
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Aluminum
