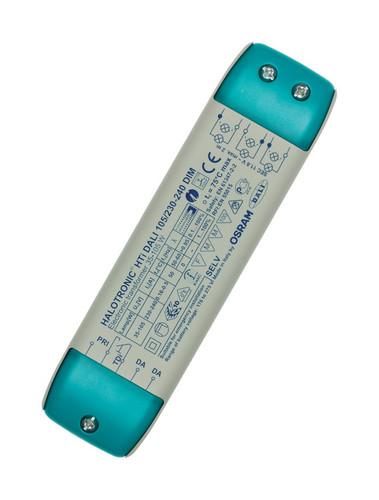

Dimmable electronic transformers for low-voltage halogen lamps. Product features: DALI transformer for low-voltage halogen lamps. Galvanic isolation between primary and secondary sides. Short-circuit protection, overload protection, overtemperature protection: electronically reversible. Secondary-side switching between electronic transformer and lamp not permitted. Energy efficiency: 91% (according to ErP Regulation 2012/1194/EC). Device also suitable for special applications that require dimming levels below 1%. Product advantages: Minimized energy consumption due to high efficiency. Through-wiring on the primary side possible. Wide temperature range. Lamp-friendly operation in the entire partial load range for a long lamp life. Areas of application: Effect and accent lighting. Living rooms. Object lighting. Conference rooms. Restaurants. Recessed and surface-mounted ceiling lights. Shop lighting. Event rooms. Suitable for indoor installations.
| Property | Value |
| Power: | 35 to 105 W |
| Length: | 170 mm |
| Width: | 44 mm |
| Number of outlets (pairs): | 6 |
| Connection type primary side: | screw connection |
| Housing material: | plastic |
| Type of transformer: | electronic transformer |
| Short-circuit proof: | yes |
| Protection class (IP): | IP20 |
| Safety transformer: | yes |
| Height: | 34 mm |
| With secondary circuit breaker: | yes |
| Structure: | yes |
| Installation: | yes |
| Overload protection: | yes |
| Overtemperature protection: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DSI: | no |
| DMX dimming: | no |
| Potentiometer dimming (integrated in device): | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | yes |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | yes |
| Leading edge dimming: | no |
| Programmable dimming: | yes |
| RF dimming: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | yes |
| Protection class (NEMA): | 1 |
| Without dimming function: | no |
