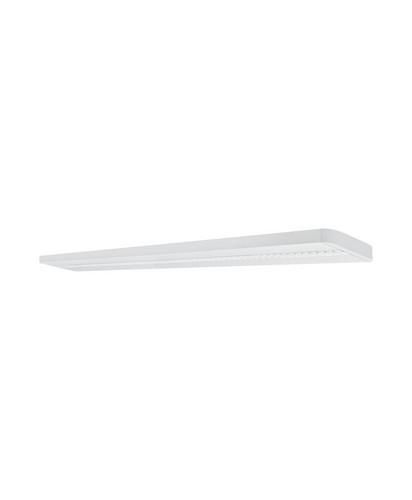

Surface-mounted luminaire for single or strip applications with emergency lighting function. Product features: Each LED with individual lens and reflector for UGR <,16 and homogeneous light distribution. Conversion kit for emergency lighting according to IEC 60598-2-22 (driver and 3 hours of battery operation for emergency lighting) included. Easy maintenance thanks to automatic self-test for emergency lighting according to IEC 60598-2-22. Suspended installation with suspension set. Can be connected to form an aesthetic seamless strip using a mechanical connector (for surface-mounted or suspended installation). Versions with a length of 1200 or 1500 mm available. Luminous flux up to 5700 lm. Luminous efficacy: up to 125 lm/W. Initial color consistency: <, 4 SDCM (threshold unit). Product benefits: Homogeneous light distribution and reduced glare thanks to the IndiviLED© optics. Emergency lighting function according to IEC 60598-2-22 with emergency lighting driver and battery. Low-flicker light thanks to special electronic ballast. Various mounting options. Up to 50% energy savings compared to T5 light bars. Other variants with DALI electronic ballast, sensor or through-wiring also available. Robust housing with IK06. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General interior lighting. Corridors, entrance areas. Seamless light strips. Shop lighting. Technical equipment: Ceiling connection box available. Suspension set available. Mechanical connector available. Through-wiring set available.
| Property | Value |
| Max. System power: | 25.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 3100 lm |
| Length: | 1488.00 mm |
| Width: | 120.00 mm |
| Height/depth: | 40.00 mm |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK06 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 35 °C |
| Connection type: | Screw terminal |
| With control gear: | yes |
| Light distributor: | Focus lens |
| Without dimming function: | yes |
| Light emission: | direct |
| With light sensor: | no |
| Control gear: | EVG |
| Suitable for recessed mounting: | no |
| Light colour: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Rated service life L70/B50 at 25 °C: | 60000 h |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 120 lm/W |
| Power factor: | 0.90 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
