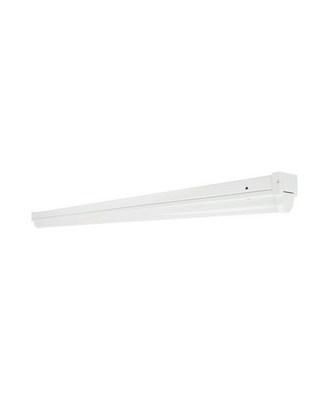

Surface-mounted luminaire with high luminous flux. Product features: Versions with luminous flux between 3500 and 7100 lm available. Very high system efficiency: up to 125 lm/W. Robust metal housing and PC diffuser. Wiring on the back of the luminaire. Through-wiring possible. Product benefits: Replacement of conventional T8 luminaires with up to 7100 lm. Up to 60% energy savings (compared to luminaires that use fluorescent lamps). Robust housing with IK08. Optional reflector accessories and numerous wiring options for flexible applications. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Indoor applications. Industrial and commercial halls. Public spaces. Corridors, stairwells, basements. Garages. Technical equipment: Reflector for high ceilings or asymmetric light distribution available (1500 mm version). Including mounting screws and dowels. Internal threaded rod and screw for housing locking included.
| Property | Value |
| Max. System power: | 31 W |
| Nominal voltage: | 220 to 240 V |
| Rated luminous flux according to IEC 62722-2-1: | 4000 lm |
| Color temperature: | 4000 K |
| With control gear: | yes |
| With light source: | yes |
| Width: | 62 mm |
| Length: | 1458 mm |
| Socket: | without |
| Housing color: | white |
| Suitable for number of lamps: | 1 |
| Operating device: | EVG |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Lamp: | LED not replaceable |
| Electrical connection with plug-in system: | no |
| With switch: | no |
| Material: | steel |
| Luminaire with limited surface temperature 'D-mark': | no |
| Covering of the lamp with thermal insulation material possible: | no |
| Suitable for emergency lighting: | no |
| Voltage type: | AC |
| Color rendering index CRI: | 80-89 |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| With motion detector: | no |
| Power factor: | 0.90 |
| Height/depth: | 74 mm |
| Wiring type: | suitable for through wiring |
| Number of poles: | 2 |
| Connection type: | Plug terminal |
