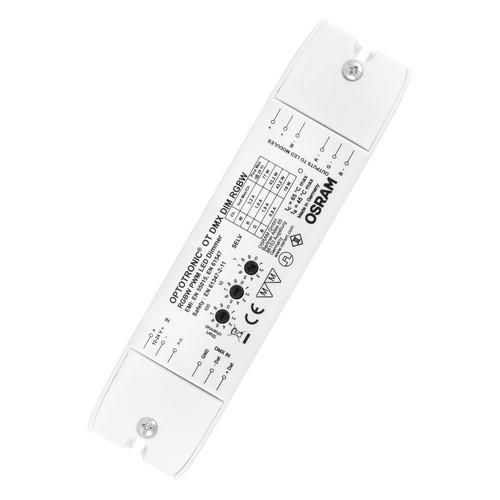

LEDVANCE Osram OT DMX RGBW DIM OT DMX RGBW DIM 12-24 VS20

Description

Features

Reviews

Product family benefits: 3 and 4 channel DMX dimmer for RGB and RGBW LED module. Separate housing for ceiling installation. High PWM frequency for optimized video recording. Product family features: Intelligent DMX dimmer with multi-channel topology and individual control. Automatic or manual addressing. Device also suitable for special applications that require dimming levels below 1%. Areas of application: Suitable for indoor installations. Trade and hospitality: retail stores, hotels, restaurants. Museums, residential buildings.

Property	Value
Protection class (IP):	IP20
Output voltage:	12 to 24 V
Protection class:	III
Length:	172.00 mm
Width:	42.00 mm
Height:	20.00 mm
Design:	dynamic
Housing:	plastic housing
Suitable for outdoor use:	no
Suitable for Constant voltage:	yes
Suitable for constant current:	no
Suitable for direct voltage (primary side):	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DSI:	no
Dimming DMX:	yes
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
