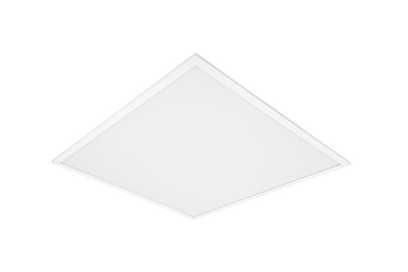

Square recessed luminaire with IP54 protection and high luminous flux, 625 x 625 mm. Product features: Protection class: IP54. Luminous flux: up to 4,320 lm. High luminous efficacy: up to 120 lm/W. Service life (L80/B50): up to 60,000 h (at 25 C). Aluminum housing, PMMA diffuser. Product advantages: Suitable for use in dusty and damp environments thanks to high protection class. High luminous flux reduces the number of luminaires per installation. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Low-flicker light thanks to special electronic ballast. 5-year guarantee. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Hospitals. Laboratories. Suitable for ceiling recessed systems with a grid dimension of 625 x 625 mm. Kitchens, work areas. Technical equipment: Accessories available for various installation options. External ballast included.
| Property | Value |
| Max. System power: | 36.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 4320 lm |
| Length: | 620.00 mm |
| Width: | 620.00 mm |
| Height/depth: | 12.60 mm |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -10 to 45 °C |
| Connection type: | Screw terminal |
| With control gear: | yes |
| Light distributor: | Diffuser lens/optics/panel |
| Installation height/depth: | 50.0 mm |
| Without dimming function: | yes |
| Installation width: | 600.0 mm |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | yes |
| Light colour: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Installation length: | 600.0 mm |
| Version of the Grid: | matt |
| Covering the light with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| DALI dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Dimming with push button: | no |
| Rated service life L70/B50 at 25 °C: | 80000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 120 lm/W |
| Power factor: | 0.90 |
| Type of wiring: | Termination |
| Number of poles: | 2 |
