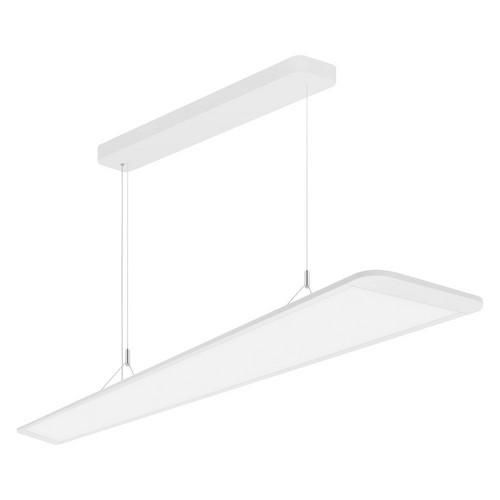

Pendant luminaires with edge feed for direct and indirect lighting, strong glare control, 1200 mm. Product features: Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70%) and indirect (30%) light emission. Driver integrated in the remote driver box. UGR 19 according to EN12464-1. High luminous efficacy: up to 110 lm/W. Service life (L70/B50): 80,000 h (at 25 °C). Follows the uniform design language of LEDVANCE (SCALE Design). Very slim aluminum housing. Luminaire versions with IoT-capable DALI-2 driver or Zigbee 3.0 technology available. Product advantages: Pendant luminaires with edge lighting for direct (70%) and indirect lighting (30%). Attractive and functional design for office applications. Good glare control (UGR 19). Very homogeneous light. Low maintenance and low operating costs. External driver for increased flexibility. Special light control design for low glare lighting. Easy and quick installation. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light bars. Offices. Meeting rooms. Conference rooms. Reception areas, entrance areas. Technical equipment: Suspension set included.
| Property | Value |
| Max. System power: | 36.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 4000 lm |
| Length: | 1200.00 mm |
| Width: | 300.00 mm |
| Height/depth: | 16.00 mm |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 45 °C |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Light distributor: | Diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | no |
| Light colour: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Installation length: | 1175 mm |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L70/B50 at 25 °C: | 80000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 110 lm/W |
| Power factor: | 0.90 |
| Wiring type: | Termination |
| Number of poles: | 2 |
