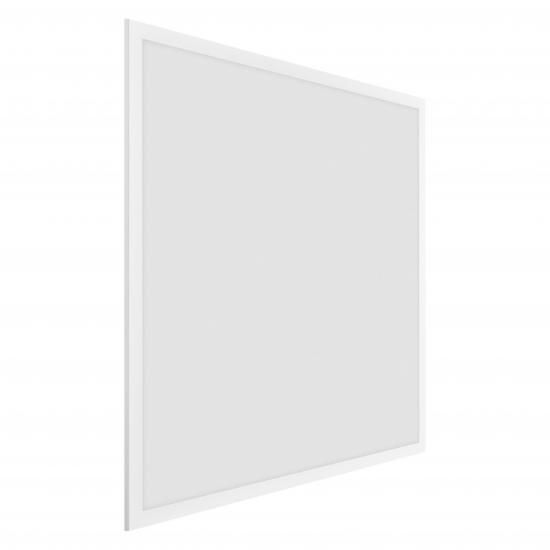

Square recessed luminaire, 600 x 600 mm. Product features: High luminous efficacy: up to 110 lm/W. Service life (L80/B10): up to 60,000 hours (at 25 °C). Connection box with plug-in terminal for tool-free connection. Aluminum housing, polystyrene diffuser. Product benefits: Up to 50% energy savings (compared to luminaires that use fluorescent lamps). External driver for increased flexibility. Light guide plate with microstructure and non-yellowing material for a long service life. Simple and quick installation. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Corridors. Offices. Conference rooms. Reception areas. Entrance areas. Elevators. Suitable for ceiling recessed systems with a grid size of 600 x 600 mm. Technical equipment: Accessories available for various installation options. External ballast included.
| Property | Value |
| Length: | 595.0 mm |
| Max. System power: | 30.00 W |
| Color temperature: | 3000 K |
| Housing color: | white |
| Beam angle: | extremely wide beam >,80° |
| Height/depth: | 9.0 mm |
| Installation width: | 591.0 mm |
| Light emission: | direct |
| Light source: | LED not replaceable |
| With light sensor: | no |
| Protection class (IP): | IP20 |
| Protection class: | II |
| Width: | 595.0 mm |
| Installation height/depth: | 50 mm |
| With motion detector: | no |
| Operating device: | EVG |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Suitable for recessed mounting: | yes |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Installation length: | 591.0 mm |
| Light color: | white |
| Voltage type: | AC |
| With control gear: | yes |
| Housing material: | aluminum |
| Cover material: | opal plastic |
| Grid design: | matt |
| Nominal voltage: | 240 V |
| Covering of the lamp with thermal insulation material possible: | no |
| Suitable for computer workstations according to EN 12464-1: | no |
| With light source: | yes |
| Rated ambient temperature according to IEC62722-2-1: | +45 °C |
| Color rendering index CRI: | 80-89 |
| Impact resistance: | IK03 |
| Dimming DMX: | no |
| Luminaire with limited surface temperature 'D-mark': | no |
| Dimming DSI: | no |
| Energy efficiency class of the built-in light source: | - |
| Dimming LineSwitch: | no |
| With air slots: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming GPRS: | no |
| LED nominal current at constant current: | 170 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| DALI dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Rated service life L70/B10 at 25 °C: | 80000 h |
| Rated service life L70/B50 at 25 °C: | 80000 h |
| Rated service life L80/B10 at 25 °C: | 60000 h |
| Rated service life L80/B50 at 25 °C: | 60000 h |
| Rated service life L90/B10 at 25 °C: | 35000 h |
| Rated service life L90/B50 at 25 °C: | 35000 h |
| Suitable for lamp power: | 30.00 W |
| Luminaire luminous efficacy: | 100 lm/W |
| Power factor: | 0.95 |
| Wiring type: | Termination |
| Number of poles: | 2 |
Features
Energy efficiency class of the permanently installed light source
-
Rated service life L90/B10 at 25 °C
35000 h
Rated service life L70/B10 at 25 °C
80000 h
Rated service life L80/B50 at 25 °C
60000 h
Manufacturer
HAN
4058075225152
GTIN
4058075225152
Covering the luminaire with thermal insulation material possible
No
Type of wiring
Diploma
Execution of the grid
Frosted
Beam angle
Extremely wide beam >80°
Rated lifetime L70/B50 at 25 °C
80000 hours
Rated lifetime L80/B10 at 25 °C
60000 hours
Rated ambient temperature according to IEC62722-2-1
+45°C
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Width
595.0 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
591.0 mm
Installation height/depth
50 mm
Installation length
591.0 mm
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for lamp power
30.00W
Suitable for light strip configuration
No
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
Yes
Suitable for wall mounting
Yes
Housing color
White
Height/Depth
9.0 mm
LED nominal current at constant current
170mA
Power factor
0.95
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
100lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Length
595.0 mm
Max. system performance
30.00W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
240V
Without dimming function
Yes
Number of poles
2
Impact resistance
IK03
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Aluminum
