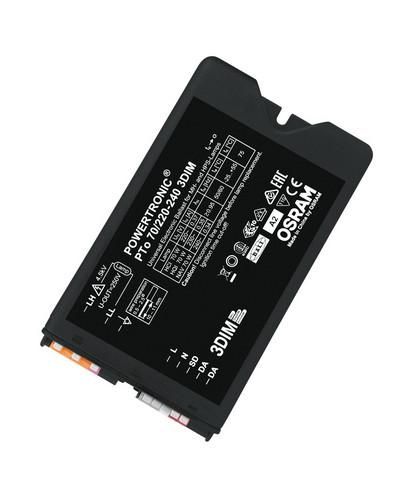

Electronic ballast for HID lamps, for outdoor lighting. Product features: 3DIM functionality (StepDIM/AstroDIM/DALI). Energy efficiency index EEI: A2. Lightning protection: up to 10 kV. Mains voltage: 198.264 V. Mains frequency: 50.60 Hz. Mains current harmonics according to EN 61000-3-2. Immunity, interference resistance according to EN 61547. Radio interference suppression: according to EN 55015 (A1: 2007) up to 300 MHz. Safety: according to EN 61347-2-12. Luminous flux factor 1 compared to conventional ballast operation. Not suitable for direct current operation. Product advantages: Up to 30% energy savings (compared to conventional ballast operation) through 3DIM (except PTo 35). High surge protection: up to 3 kV (LN) / 4 kV (L/N-PE). Automatic safety shutdown in the event of a lamp defect or at the end of lamp life (EoL). Excellent thermal behavior enables very high limit temperatures tc and ta. Areas of application: Suitable for luminaires of protection class I and II. Suitable for outdoor applications in luminaires with IP > 54.
| Property | Value |
| Suitable for lamp power: | 73 W |
| Length: | 133.00 mm |
| Width: | 77.00 mm |
| Height: | 48.00 mm |
| Housing: | Plastic housing |
| Design: | electronic |
| Rated voltage: | 220 to 240 V |
| Multiwatt design: | no |
| For lamp type TC-D: | no |
| For lamp type TC-DD: | no |
| For lamp type TC-L: | no |
| For lamp type TC-DEL: | no |
| For lamp type T7: | no |
| For lamp type T16: | no |
| For lamp type T26: | no |
| For lamp type TR: | no |
| For lamp type TC-T: | no |
| For lamp type HI: | yes |
| For lamp type TC-S: | no |
| For lamp type TC-TEL: | no |
| For lamp type HM: | yes |
| For lamp type HS: | yes |
| For lamp type LS: | no |
| For lamp type T16-R: | no |
| For lamp type T38: | no |
| For lamp type TU: | no |
| For lamp type TC-F: | no |
| For lamp type TC-QEL: | no |
| For lamp type TC-SEL: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming LineSwitch: | yes |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Suitable for lamp power (1 lamp): | 73 W |
| With strain relief: | no |
| Protection class (IP): | IP20 |
