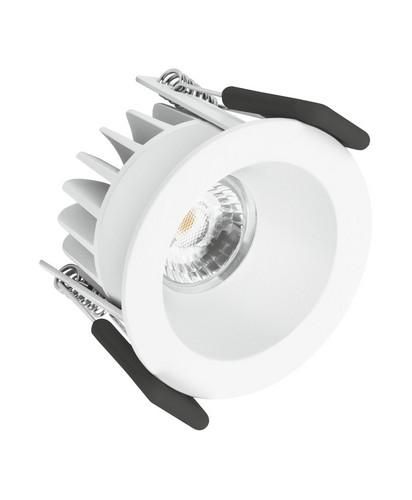

Recessed spotlight, round, darklight with light shielding. Product features: Luminous efficacy: 85 lm/W. Luminous flux: 580 lm. Diameter of the required ceiling cut-out: 63 mm. Color temperature: 3,000 K. Initial color consistency: 4 SDCM (threshold unit). Beam angle: 36°. Protection class, front: IP44. Product benefits: Matches the design of the LEDVANCE DOWNLIGHT luminaire family. Energy savings of up to 90% compared to halogen lamp spotlights. Functional and minimalist design. Easy installation with quick connection. External driver for extended flexibility (compatible with selected dimmable drivers). Design for extra performance. 70° cut-off angle - perfect for shelf lighting. 3 year guarantee. Areas of application: Replacement of conventional 50 W halogen spotlights. Hotel rooms. Bars, restaurants. Bathrooms. Shelf and under-cabinet lighting. Galleries, museums. General lighting.
| Property | Value |
| Max. System power: | 7.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 580 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP44 |
| Outer diameter: | 70.00 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 90 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 70.00 mm |
| Width: | 70.00 mm |
| Height/depth: | 58.00 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Installation width: | 63 mm |
| Installation length: | 63 mm |
| Luminous flux: | 580 lm |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for Traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Focus lens |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 45 °C |
| Wiring type: | Termination |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Luminaire luminous efficacy: | 85 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Color consistency (McAdam ellipse): | SDCM4 |
Features
Manufacturer
HAN
4058075127166
GTIN
4058075127166
Covering the luminaire with thermal insulation material possible
No
Type of wiring
Diploma
Beam angle
Medium beam 21-40°
Outer diameter
70.00 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
580lm
Rated ambient temperature according to IEC62722-2-1
-20 to 45 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
70.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
63 mm
Installation height/depth
90 mm
Installation length
63 mm
Color consistency (McAdam ellipse)
SDCM4
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
58.00 mm
Power factor
0.90
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
85lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
580lm
Light distributor
Focus lens
Light distribution
Symmetrical
Length
70.00 mm
Max. system performance
7.00W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
2
Reflector
Without
Impact resistance
IK06
IP protection)
IP44
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Housing material
Aluminum
