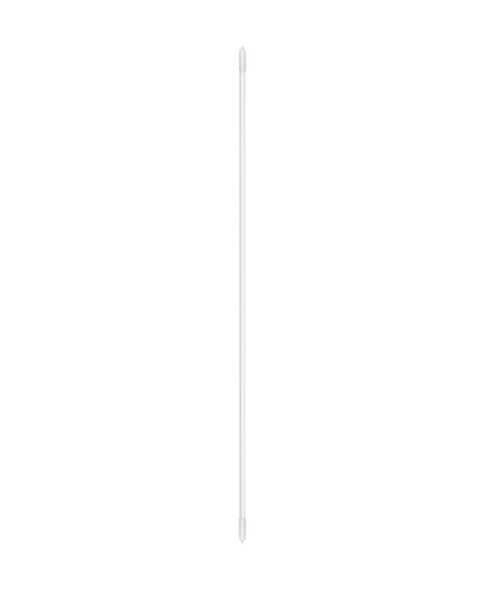

LED tubes for electronic ballasts and mains voltage. Product features: Glass tube. Protection class: IP20. Lifespan: up to 60,000 hours. Compatible with many commercially available electronic ballasts (see compatibility list) and mains voltage. High color consistency: 5 SDCM (threshold unit). Shatter protection in accordance with IEC 61549 AMD 2:2010 -810-1 4.4.1 (validated in preparation). Product advantages: No sagging thanks to glass technology. Also suitable for operation at low temperatures. High luminous flux for demanding lighting tasks. Areas of application: Supermarkets and department stores. Industry. Public buildings, receptions, offices, corridors, etc. General lighting in ambient temperatures of 20+50 C.
| Property | Value |
| Lamp wattage: | 37.00 W |
| Color temperature: | 4000 K |
| Rated luminous flux according to IEC 62722-2-1: | 5600 lm |
| Socket: | G5 |
| Lamp shape: | Tube, single-ended |
| Energy efficiency class: | D |
| Glass/cover design: | frosted |
| Nominal voltage: | 240 V |
| Voltage type: | AC |
| Diameter: | 17.0 mm |
| Length: | 1449 mm |
| Dimmable: | no |
| Weighted energy consumption in 1,000 hours: | 37 kWh |
| Color: | white |
| Color rendering index CRI: | 80-89 |
| Protection class (IP): | IP20 |
| With remote control: | yes |
| Average nominal service life: | 60000 h |
| Nominal current: | 170 mA |
| Power factor: | 0.90 |
| Luminous flux: | 5600 lm |
| Lamp luminous efficacy: | 151 lm/W |
| Filament lamp: | yes |
| Light color according to EN 12464-1: | neutral white 3300 to 5300 K |
| Light color: | 840 |
| Beam angle: | 160.00 ° |
| Color consistency (McAdam ellipse) : | SDCM5 |
| Energy Efficiency Index (EEI) : | 0.09 |
| Lamp designation: | other |
| Min. number of switching operations: | 200000 |
| Total harmonic distortion (THD) : | 20 |
| Remote control possible: | no |
| Photobiological safety according to EN 62471: | RG0 |
Features
Manufacturer
HAN
4058075137868
GTIN
4058075137868
Glass/cover design
Matte
Beam angle
160.00 °
Rated luminous flux according to IEC 62722-2-1
5600lm
Dimmable
No
Diameter
17.0 mm
Energy efficiency class
D
Color
Color temperature
4000K
Color rendering index CRI
80-89
Remote control possible
No
Filament lamp
Yes
Weighted energy consumption in 1,000 hours
37 kWh
Lamp designation
Other
Lamp shape
Tube, single-ended
Lamp power
37.00W
Lamp luminous efficacy
151lm/W
Power factor
0.90
Light color
840
Light colour according to EN 12464-1
Neutral white 3300 to 5300 K
Luminous flux
5600lm
Length
1449 mm
Min. number of switching operations
200000
With remote
Yes
Average nominal life
60000 hours
Nominal voltage
240V
Rated current
170mA
Photobiological safety according to EN 62471
RG0
Base
G5
Voltage type
AC
