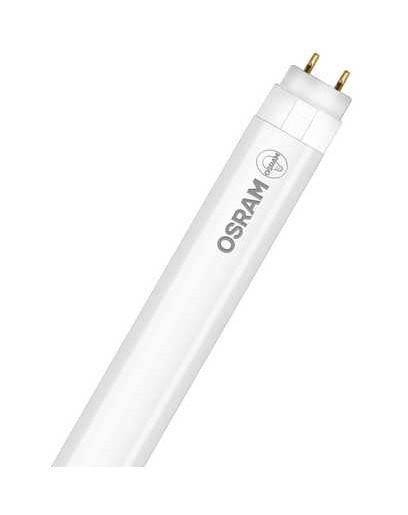

LED tubes for electronic and electromagnetic ballasts. Product features: Mercury-free and RoHS compliant. Protection class: IP20. Service life: up to 50,000 hours. Compatible with conventional and many commercially available electronic ballasts (see compatibility list) and mains voltage. Shatter protection in accordance with IEC 61549 AMD 2:2010 -810-1 4.4.1 (validated in preparation). High color consistency: 5 SDCM (threshold unit). Product advantages: Also suitable for operation at low temperatures. High luminous flux for demanding lighting tasks. Easy installation. No sagging thanks to glass technology. Areas of application: General lighting in ambient temperatures of 20+50 °C. Supermarkets and department stores. Industry. Lighting in industrial production.
| Property | Value |
| Lamp wattage: | 14.00 W |
| Color temperature: | 6500 K |
| Rated luminous flux according to IEC 62722-2-1: | 2100 lm |
| Socket: | G13 |
| Lamp shape: | Tube, single-ended |
| Energy efficiency class: | D |
| Glass/cover design: | frosted |
| Nominal voltage: | 240 V |
| Voltage type: | AC |
| Diameter: | 28.0 mm |
| Length: | 1200 mm |
| Dimmable: | no |
| Weighted energy consumption in 1,000 hours: | 14 kWh |
| Color: | white |
| Color rendering index CRI: | 80-89 |
| Protection class (IP): | IP20 |
| With remote control: | yes |
| Average nominal service life: | 50000 h |
| Nominal current: | 72 mA |
| Power factor: | 0.90 |
| Luminous flux: | 2100 lm |
| Lamp luminous efficacy: | 150 lm/W |
| Filament lamp: | yes |
| Light color according to EN 12464-1: | daylight white >,5300 K |
| Light color: | 865 |
| Beam angle: | 160.00 ° |
| Color consistency (McAdam ellipse) : | SDCM5 |
| Energy Efficiency Index (EEI) : | 0.09 |
| Lamp designation: | T8 |
| Min. number of switching operations: | 200000 |
| Remote control possible: | no |
