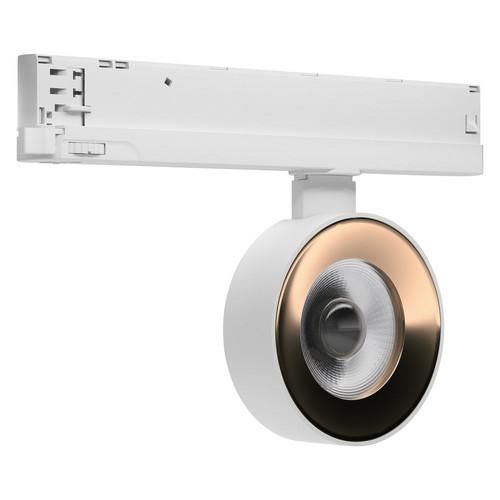

3-phase track spotlight with ballast integrated in the track. Product features: Compact track spotlight with ballast integrated in the track. Made in Germany. Luminaire luminous efficacy: up to 85 lm/W. Rotation angle: 350°, tilt angle: 90°. Very good color rendering index Ra: 90. Color rendering index Ra9: >, 60. Initial color consistency: 3 SDCM (threshold unit). Available with beam angle: 25°, 36°. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminum. Available in matt white (similar to RAL9010), matt black (similar to RAL9005), concrete gray (similar to RAL7042). Product advantages: Timeless design suits high-quality interiors. Included 3-phase adapter compatible with common power tracks (NORLUX, GLOBAL, NUCO, NORDIC). No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Accent lighting. Fashion stores, accessories stores. Retail. Hotels, restaurants, shops.
| Property | Value |
| Max. System power: | 28.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 2280 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| With control gear: | yes |
| Suitable for recessed mounting: | no |
| Length: | 260.00 mm |
| Width: | 33.00 mm |
| Height/depth: | 160.00 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | no |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Luminous flux: | 2280 lm |
| Cover material: | transparent plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for Busbar mounting: | no |
| Adjustability: | rotatable and pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | yes |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | yes |
| Light distributor: | Focus lens |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 80000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Luminaire luminous efficacy: | 80 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Colour consistency (McAdam ellipse): | SDCM3 |
