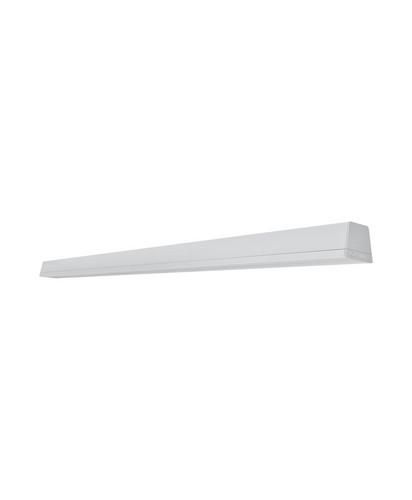

Luminaire inserts with double asymmetrical light emission. Product features: Double asymmetrical light distribution with a beam angle of 35° each. Light output: up to 135 lm/W. Fixed power taps for the electrical connection. High-quality aluminum housing. Protection class: IP20. Follows the uniform design language of LEDVANCE (SCALE Design). Product advantages: Innovative optical design with drawn rod lens technology over the entire length of the luminaire. Internal luminaire holders prevent the luminaire from falling out during installation. Simple electrical and mechanical connection to the support rail through click-in installation. Two-sided light distribution for lighting and accentuating shelves. Clean look, as mounting clips are not visible after installation. Plug-and-play system enables easy installation. High-quality design. Light strips with up to 81 (On-Off) / 99 (DALI) luminaires and a total length of 124 m (On-Off) / 151 m (DALI) possible. Energy savings of up to 65% compared to luminaires with 2 x 80 W T5 lamps. Version with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with compact fluorescent lamps. Discounters, supermarkets. Technical equipment: Mounting rail with permanently integrated 5- (on-off) / 7-pin (DALI) cable harness.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 6900 lm |
| Color temperature: | 4000 K |
| With light source: | yes |
| Operating device: | EVG |
| Length: | 1534.00 mm |
| Width: | 71.00 mm |
| Height/depth: | 53.00 mm |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Light distribution: | double asymmetrical |
| Light emission: | direct |
| Suitable for emergency lighting: | no |
| Housing material: | aluminium |
| Housing colour: | silver |
| Colour rendering index CRI: | 80-89 |
| With control gear: | yes |
| Reflector: | without |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| Light source: | LED not replaceable |
| Light color: | white |
| Voltage type: | AC/DC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming manufacturer-specific: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming LineSwitch: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | other |
| Beam angle: | wide beam 41-80° |
| Rated service life L70/B50 at 25 °C: | 75000 h |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Max. System power: | 53.00 W |
| Power factor: | 0.95 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 5 |
| Connection type: | other |
