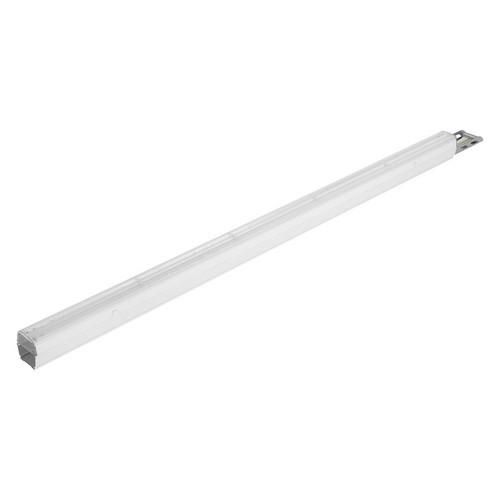

Luminaire inserts with wide light emission. Product features: Wide beam angle: 90°. Clickable solution with push buttons. Light output: up to 160 lm/W. Fixed luminaire taps. Lumen package 5600 lm, 8000 lm, 11200 lm. Sheet steel housing. Lens material: PMMA. Protection class: IP20. Uniform family design with LEDVANCE. Service life (L80/B10): up to 60,000h. Product advantages: Homogeneous light distribution. Easy installation, tool-free connection. Energy-saving and cost-effective. Flexible application thanks to a wide range of different lumen packages and luminaire opening angles. Light strips with up to 57 (on-off) / 66 (DALI) luminaires possible. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industrial halls, high-bay warehouses, workshops, hardware stores. Discount stores, supermarkets. Technical equipment: Mounting rail with permanently integrated 5- and 8-pin cable harness.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 5600 lm |
| Color temperature: | 4000 K |
| With light source: | yes |
| Operating device: | electronic transformer |
| Length: | 1500.00 mm |
| Width: | 66.80 mm |
| Height/depth: | 39.40 mm |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Light distribution: | symmetrical |
| Light emission: | direct |
| Suitable for emergency lighting: | no |
| Housing colour: | white |
| Colour rendering index CRI: | 80-89 |
| With operating device: | yes |
| Reflector: | without |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| Light source: | LED not replaceable |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming manufacturer-specific: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming LineSwitch: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Focus lens |
| Rated service life L70/B50 at 25 °C: | 65000 h |
| Rated service life L80/B10 at 25 °C: | 60000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Max. System power: | 35.00 W |
| Power factor: | 0.90 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 2 |
| Connection type: | other |
