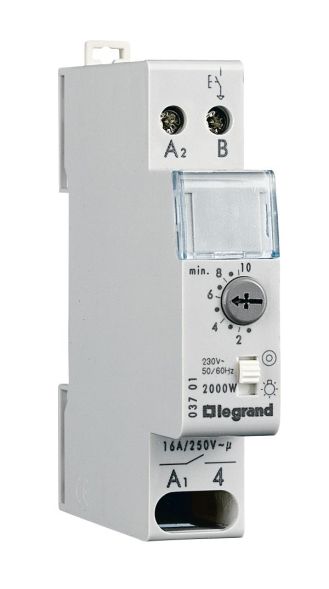

Legrand RexEMPlus, staircase light timer, electronic, operating voltage 230 V 50/60 Hz, 1 normally open contact, extremely quiet, time range: 0.5 - 10 min., can be switched on at any time, automatic 3-/4-wire connection identification, manual switch for switching from minute light to continuous light, zero-crossing circuit, glow lamp current max. 25 mA, protection class IP 20, fastening to top hat rail EN 60715 by means of snap-in quick fastening, with labeling window, device width: 1 pitch unit of 17.5 mm.
| Property | Value |
| Width in pitch units: | 1 |
| Off delay: | 0.5 to 10 min |
| Function: | electronic |
| Mounting type: | DIN rail |
| Control voltage 1: | 230 V |
| Rated switching current: | 16 A |
| Control voltage type 1: | AC |
| Surge function selectable: | no |
| Frequency of control voltage 1: | 50 to 60 Hz |
| Circuit type: | 3- and 4-wire circuit |
| Switch-off warning: | without |
| Follow-up switching: | can be switched later |
| Type of supply voltage: | AC |
| Installation depth: | 70 mm |
| Max. Switching current (cos phi = 0.6): | 13 A |
| Button glow lamp current: | 50 mA |
| Supply voltage: | 250 V |
| Max. incandescent lamp load: | 2000 W |
| Max. fluorescent lamp load: | 1000 VA |
| Max. fluorescent lamp load (duo circuit): | 1000 VA |
| Max. Fluorescent lamp load (parallel compensated): | 120 VA |
| Number of contacts as normally open: | 1 |
Features
Insert Module Type
Light switch covers
Type of voltage of the supply voltage
AC
Supply voltage
250 V
Circuit type
3- and 4-wire circuit
Max. fluorescent lamp load
1000 VA
Manufacturer
HAN
003701
GTIN
4010957037017
Number of contacts as normally open
1
Width in pitch units
1
Installation depth
70 mm
Function
Electronic
Mounting type
DIN rail
Supply voltage
250V
