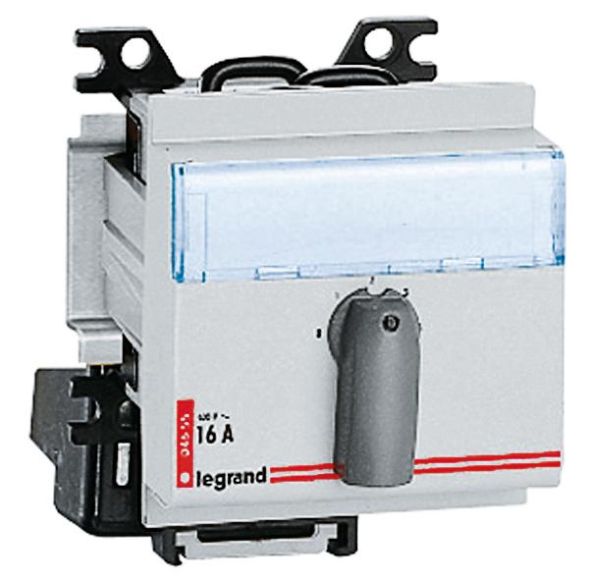

Description
According to IEC 669-1, EN 60 669-1,0632 Part 1, switching lever can be locked in both switching positions with accessory order no. 044 42 and padlock, terminals with accessories, order no. 044 44 sealable Utilization category AC 22 according to IEC 947-3,0660 Part 107 Maximum connection cross-section: round wire and flexible with ferrule 4 mm
| Property | Value |
| Rated continuous current Iu: | 16 A |
| Number of poles: | 1 |
| Number of switching positions: | 5 |
| Degree of protection (IP), front: | IP40 |
| Max. Rated operating voltage Ue at AC: | 690 V |
| With zero position: | yes |
| With return to zero position: | no |
| Device design: | Surface-mounted device |
| Design of the actuating element: | short rotary handle |
| Complete device in housing: | no |
| Suitable for front mounting: | no |
| Front plate size: | other |
| Suitable for floor mounting: | yes |
| Switch design: | Changeover switch |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
004655
GTIN
3245060046552
Number of switching positions
5
Design of the actuating element
Short twist grip
Design of the switch
Switch
Rated continuous current Iu
16A
Front shield size
Other
Suitable for floor mounting
Yes
Suitable for front mounting
No
Device type
Construction device
Complete device in housing
No
Max. rated operating voltage Ue at AC
690V
With zero setting
Yes
With retraction to zero position
No
Number of poles
1
Protection class (IP), front
IP40
