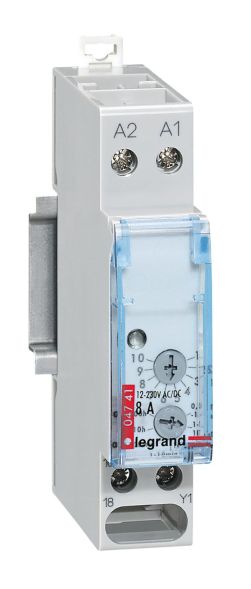

Application: For small control systems where individual time functions are required. E.g. lighting, ventilation, control and regulation technology, automation, signaling systems,... Lid can be sealed Uniform Lexic housing Permissible voltage deviation 10 % UN Ambient temperature -20...+60° C Power consumption 2W Relative humidity 15..85 % no condensation Protection class 2 (protectively insulated) Repeat accuracy 0.2 % of the setting value Setting accuracy 5 % at 25 ° C Minimum duty cycle of control contact 50 ms Recovery time max. 100 ms Switching frequency 10 to the power of 5 switching cycles at 2000 VA, 10 to the power of 7 switching cycles mechanical Max. permissible length of control cable: 20 m
| Property | Value |
| Nominal switching current at 250 V AC: | 8 A |
| Width in Division units: | 1 |
| Number of switches: | 1 |
| Installation height: | 70 mm |
| Mounting type: | DIN rail |
| Function: | Off-delay |
| Supply voltage: | 250 V |
| 1. Time range: | 0.1 to 360000 |
| Control voltage 1: | 12 to 230 V |
| Control voltage type 1: | AC/DC |
| Frequency of control voltage 1: | 50 to 60 Hz |
| Type of supply voltage: | AC |
| Type of operation: | analog with single function |
| 1. Time range unit: | seconds/hours |
Features
Insert Module Type
Light switch covers
Type of voltage of the supply voltage
AC
Supply voltage
250 V
Manufacturer
HAN
004741
GTIN
4010957047412
Width in pitch units
1
Installation height
70 mm
Function
Relapse delay
Mounting type
DIN rail
Supply voltage
250V
