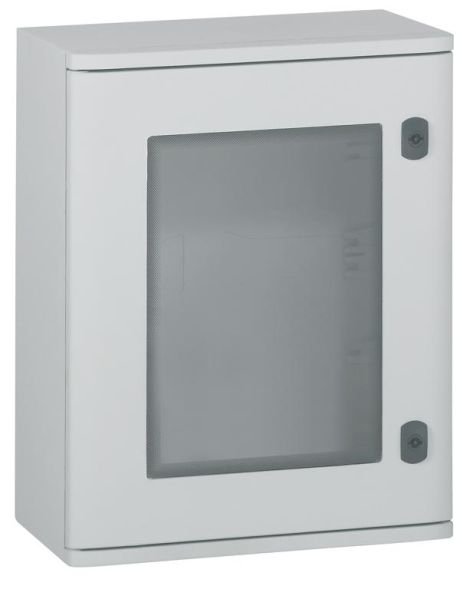

Legrand wall cabinet Marina with safety glass window, protection class IP 66 - IK 10, class II, according to IEC/EN 60529, IEC/EN 62262, external dimensions 500 x 400 x 206 (height x width x depth in mm) Material: glass fiber reinforced polyester, light gray RAL 7035, self-extinguishing 960 °C, particularly suitable for corrosive environments, door can be hinged on both sides, including double-bar lock with double-bit key.
| Property | Value |
| Height: | 500 mm |
| Width: | 400 mm |
| Depth: | 200 mm |
| Installation depth: | 205 mm |
| Inner depth: | 178 mm |
| Protection class (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | yes |
| Mounting option: | no |
| With mounting plate: | no |
| Type of cover: | door |
| Type of door: | single |
| Cover design: | closed |
| Functional integrity: | without |
| Material thickness of housing: | 2.5 mm |
| Material thickness of door/cover: | 2.8 mm |
| With lock: | yes |
| Transparent cover/door: | yes |
| Color: | gray |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
036272
GTIN
3245060362720
Cultivation option
No
Type of cover
Door
Type of door
Singles
Cover design
Closed
Width
400 mm
Installation depth
205 mm
Color
Functional preservation
Without
Suitable for outdoor use
Yes
Suitable for lightning protection
Yes
Height
500 mm
Internal depth
178 mm
Housing material thickness
2.5 mm
Material thickness door/lid
2.8 mm
With mounting plate
No
With lock
Yes
Mounting type
Surface-mounted
Surface
Untreated
RAL number
7035
Impact resistance
IK10
IP protection)
IP66
Protection class
II
Depth
200 mm
Transparent lid/door
Yes
Housing material
Plastic
