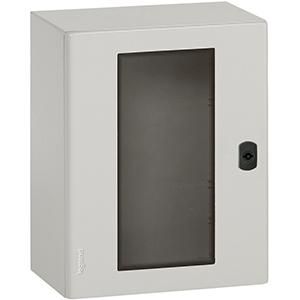

Legrand 036928 Control cabinet Atlantic FEN 500x400x200 m. MTP

Description

Features

Reviews

Legrand Atlantic wall cabinet with viewing window made of tinted glass, protection class IP 66 - IK 10 according to IEC/EN 60529, IEC/EN 62262, external dimensions 500 x 400 x 200 (height x width x depth in mm) Material: sheet steel, light grey RAL 7035 with 80 µ polyester coating against corrosion and aggressive environmental conditions, fastening points for mounting slide rails, door can be hinged on both sides, including double-bar lock with double-bit key, including mounting plate.

Property	Value
Height:	500 mm
Width:	400 mm
Depth:	200 mm
Installation depth:	205 mm
Inner depth:	180 mm
Protection class (IP):	IP66
Protection class:	I
Impact resistance:	IK10
Housing material:	Steel
RAL number:	7035
Mounting type:	Surface-mounted
Suitable for outdoor use:	yes
Surface:	powder-coated
Suitable for lightning protection:	no
Mounting option:	no
With mounting plate:	yes
Number of openings for flange plates:	1
Type of cover:	Door
Type of door:	Single
Cover design:	closed
Functional integrity:	other
Material thickness of housing:	1 mm
Material thickness of door/cover:	1.5 mm
With lock:	yes
Transparent cover/door:	yes
Color:	gray
