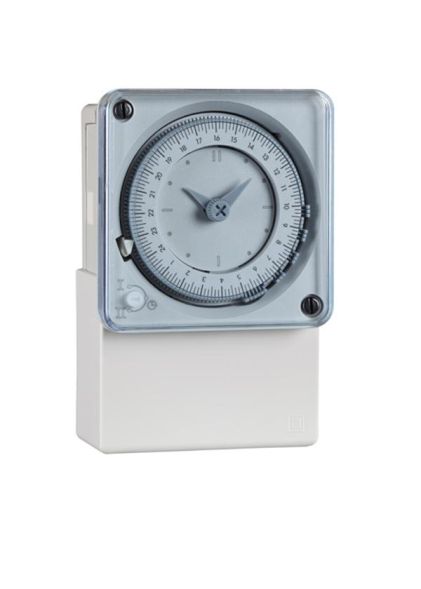

Legrand MicroRex QT, analogue daily timer with quartz motor (accuracy +/- 2.5 sec/day, power reserve 100 hours) for front panel installation and wall mounting, 1 channel, operating voltage 230 V 50/60 Hz. With manual switch (ON/OFF/AUTOMATIC). Pointer can be rotated forwards and backwards, making it easy to change over (e.g. summer/winter time), shortest switching time 30 minutes. Switching output: 1 changeover contact.
| Property | Value |
| Number of channels: | 1 |
| Protection class (IP): | IP20 |
| 24 h program: | yes |
| Manual operation: | yes |
| Supply voltage: | 230 V |
| Mounting type: | Front mounting 72x72 mm |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50 to 60 Hz |
| Shortest switching time channel 1: | 30 min |
| Contact design: | Changeover contact |
| Power reserve in hours: | 100 |
| Accuracy per day: | 2.5 s |
| Mains synchronous: | no |
| Weekly program: | no |
| Nominal switching current at 250 V AC: | 16 A |
| Annual program: | no |
| Quartz-controlled: | yes |
| Automatic summer/winter time change: | no |
| Height: | 110 mm |
| Width: | 72 mm |
| Depth: | 44 mm |
| Program disk division 1: | 10 min |
| Switching preselection: | yes |
| Potential-free switching contact: | yes |
| 60 min program: | no |
Features
Insert Module Type
Light switch covers
Type of voltage of the supply voltage
AC
Supply voltage
230 V
Number of channels
1
Manufacturer
HAN
049754
GTIN
4010957497545
Width
72 mm
Height
110 mm
Mounting type
Front mounting 72x72 mm
IP protection)
IP20
Depth
44 mm
Supply voltage
230V
