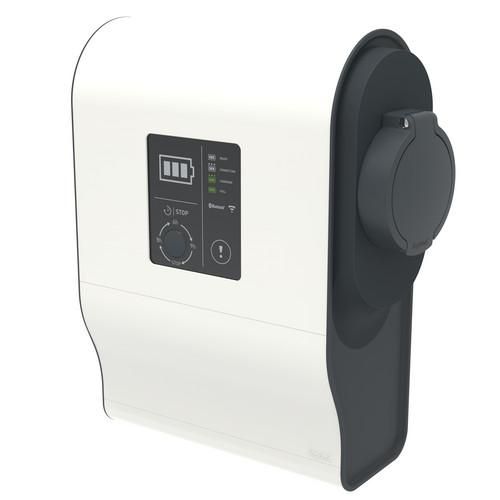

Legrand Green'up wall charging station 3.7/4.6 kW, charging socket type 2 with contact protection, for charging electric vehicles in accordance with IEC 61851-1 Mode 3, 1-phase charging 230 V AC, charging power adjustable: 3.7 or 4.6 kW / charging current 16 or 20 A. Number of charging points: 1, protection class IP 44 - IK 08, material: plastic, color: white/black, dimensions (HxWxD): 365 x 295 x 140 mm, for mounting directly on the wall or as a column with base Order No. 059052 (optional). Operation of the charging station using a function button for direct ON/OFF switching and charging or delayed switching on of the charging process by 3, 6 or 9 hours. Illuminated status display for easy recognition of the operating status. Programmable daily charging/energy management and access lock via integrated Bluetooth and the EV-Charge app. Control function and remote configuration with smartphone or PC via IP (RJ45) or WiFi, expandable with communication set Order No. 059056, protocols: OCPP 1.6 and 2.0, Modbus RS485. Integrated DC fault current detection. Each charging station must be protected in accordance with regulations with a residual current device and a circuit breaker in accordance with local connection conditions.
| Property | Value |
| Height: | 365 mm |
| Width: | 295 mm |
| Depth: | 140 mm |
| Protection class (IP): | IP44 |
| Impact resistance: | IK08 |
| Nominal connected load: | 3.7 kW |
| Max. Output per charging point: | 4.6 kW |
| System side connection design: | 1-phase |
| Mounting type: | Wall mounting |
| Housing material: | Plastic |
| Number of charging points: | 1 |
| Number of type 2 charging sockets: | 1 |
| Access control function: | no |
| With energy meter: | no |
| With house connection box (HAK): | no |
| With communication interface: | no |
| With load management: | yes |
| With circuit breaker: | yes |
