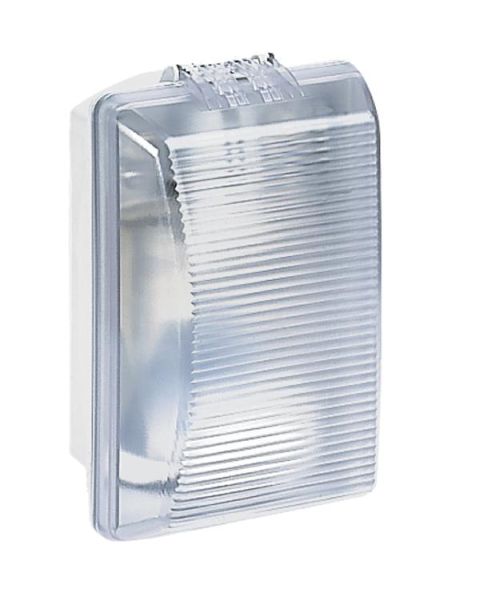

Damp-proof luminaire, rectangular, protection class II IP 55 - IK 08, housing and cover made of polycarbonate, cover can be opened to the right or left, including 1 Plexo mounting screw connection, not yet fitted, socket fixed to the reflector (with snap fastening), self-extinguishing up to 850 °C, supplied without light source
| Property | Value |
| Max. System power: | 55 W |
| Rated luminous flux according to IEC 62722-2-1: | 900 lm |
| Suitable for number of lamps: | 1 |
| Length: | 219 mm |
| Width: | 140 mm |
| Height/depth: | 113 mm |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 110 to 230 V |
| Housing color: | gray |
| Housing material: | plastic |
| Color temperature: | 2700 K |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| With light source: | no |
| Light source: | Incandescent lamp |
| Rated ambient temperature according to IEC62722-2-1: | -10 up to 40 °C |
| Socket: | E27 |
| With operating device: | no |
| Cover material: | opal plastic |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | asymmetrical |
| With light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Installation length: | 219 mm |
| Design of the grid: | without |
| Covering of the lamp with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depends on the operating device: | no |
| Suitable for lamp power: | 55 W |
Features
Insert Module Type
Light switch covers
Color
White
Manufacturer
HAN
062400
GTIN
3245060624002
Covering the luminaire with thermal insulation material possible
No
Execution of the grid
Without
Rated luminous flux according to IEC 62722-2-1
900lm
Rated ambient temperature according to IEC62722-2-1
-10 to 40 °C
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Width
140 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation length
219 mm
Color temperature
2700K
Color rendering index CRI
90-100
Version
E27
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
55W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
Gray
Height/Depth
113 mm
Luminaire with limited surface temperature D-mark
No
Lamps
Light bulb
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Light distribution
Asymmetrical
Length
219 mm
Max. system performance
55W
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
With air slots
No
Nominal voltage
110 to 230 V
Without dimming function
Yes
Impact resistance
IK08
IP protection)
IP54
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
