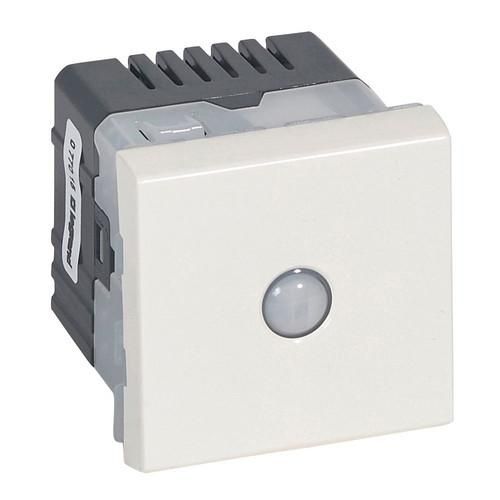

Mosaic energy saving switch, 2-wire, function and installation like a changeover switch. But if the integrated IR detector does not register any movement for 1 minute, the light is automatically switched off. Color: Ultra white
| Property | Value |
| Depth: | 32.1 mm |
| Width: | 74.7 mm |
| Height: | 74.7 mm |
| Design: | Motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9003 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Protection class (IP): | IP40 |
| Max. switching capacity: | 150 W |
| Type of voltage: | AC |
| Max. range to one side: | 6 m |
| Min. duty cycle: | 600 s |
| Max. Duty cycle: | 10 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -5 to 45 °C |
| Adjustable response brightness: | no |
| Adjustable response sensitivity: | no |
| Max. range, frontal: | 8 m |
| Max. Inrush current: | 0.05 A |
| Optimal installation height: | 1.2 m |
| Surface finish: | glossy |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 6 m |
| Control current: | 0.05 mA |
| Horizontal detection angle: | 130 ° |
| Frequency: | 47 to 53 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| With DALI interface: | no |
| Extension input: | yes |
| Connection type: | screw terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK02 |
| Installation depth: | 32.1 mm |
Features
Insert Module Type
Light switch covers
Color
White
Bridging switch
Yes
With signal unit
No
Forced shutdown
Yes
Max. inrush current
0.05 A
HAB
077015 Mosaic 2-wire ultra white
Manufacturer
HAN
077015
GTIN
3414970594907
Dimming function with dimming insert
No
Alarm function
No
Connection type
Screw terminal
Response sensitivity adjustable
No
Response brightness adjustable
No
Antibacterial treatment
No
Version
Motion detector
Surface finish
Glittering
Width
74.7 mm
Installation depth
32.1 mm
Detection field diameter on floor
6m
Detection angle horizontal
130°
Color
Remote controllable
No
Frequency
47 to 53 Hz
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
74.7 mm
Constant light control
No
Max. duty cycle
10mins
Max. range frontal
8m
Max. range to one side
6m
Max. switching capacity
150W
Min. duty cycle
600s
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Extension input
Yes
Nominal voltage
230V
Surface
Untreated
Optimal mounting height
1.2m
RAL number (similar)
9003
Impact resistance
IK02
IP protection)
IP40
Voltage type
AC
Teach function for response brightness
No
Temperature
-5 to 45 °C
Depth
32.1 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
No
Networkable
No
Material
Plastic
Material quality
Thermoplastic
