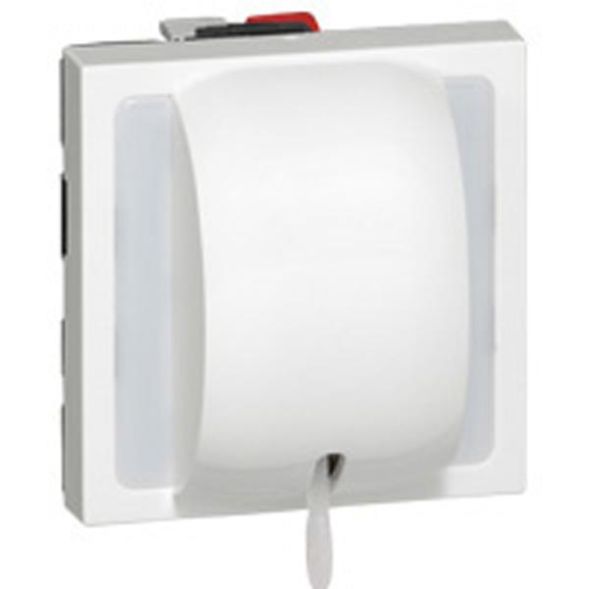

Mosaic pull switch changeover contact 2-module Color: Ultra white
| Property | Value |
| Color: | white |
| Design: | Single button |
| Suitable for protection class (IP): | IP31 |
| Operating method: | Pull cord |
| Mounting type: | Module carrier |
| Number of actuating rockers: | 1 |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Modular device for installation switch programs |
| Feedback contact: | no |
| With lighting: | no |
| Mounting type: | snap in |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9003 |
| Nominal voltage: | 250 V |
| Number of modules (with modular design): | 2 |
| Print: | without |
| Rated current: | 6 A |
| Device width: | 45 mm |
| Device height: | 45 mm |
| Device depth: | 35.6 mm |
| Number of poles: | 2 |
| Transparent: | no |
| Antibacterial treatment: | no |
| With signal lamp: | no |
| Min. depth of device box: | 40 mm |
Features
Insert Module Type
Light switch covers
Color
White
Feedback contact
No
Number of actuating rockers
1
With lighting
No
Manufacturer
HAN
077044
GTIN
3245060770440
Antibacterial treatment
No
Number of modules (for modular construction)
2
Imprint
Without
Version
Single button
Surface finish
Glittering
Operating mode
Pull cord
Mounting type
Snap into place
Rated current
6A
Color
Suitable for protection class (IP)
IP31
Device width
45 mm
Device height
45 mm
Device depth
35.6 mm
Halogen free
Yes
Min. depth of the device box
40 mm
With signal lamp
No
Mounting type
Module carrier
Nominal voltage
250V
Surface
Untreated
Number of poles
2
RAL number (similar)
9003
Text field/label area
No
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Modular device for installation switch programs
