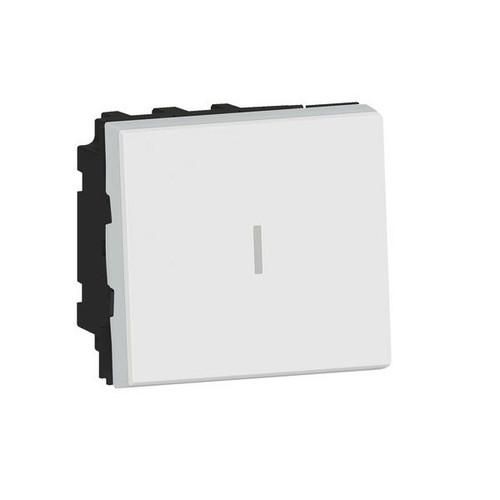

Mosaic changeover switch EASYLED20A 2-pin, screw terminals, 2-module, can be illuminated with LED Color: Ultra white
| Property | Value |
| Color: | white |
| Suitable for protection class (IP): | IP31 |
| Circuit type: | Changeover switch |
| Operating type: | Rocker/button |
| Number of rocker switches: | 1 |
| Mounting type: | Module carrier |
| Push button: | no |
| Composition: | Modular device for installation switch programs |
| Mounting type: | snap-in |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9003 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 20 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | screw terminal |
| Number of modules (with modular design): | 2 |
| Lighting: | no |
| Lighting type: | other |
| Lighting function: | other |
| Rated current: | 20 A |
| Installation depth: | 32 mm |
| Device depth: | 44 mm |
| Device width: | 45 mm |
| Device height: | 45 mm |
| With mounting plate: | no |
| Text field/labeling area: | no |
| Min. depth of the device box: | 30 mm |
Features
Insert Module Type
Light switch covers
Feedback contact
No
Number of actuating rockers
1
Circuit type
Changeover switch
Lighting
No
Switching current for fluorescent lamps
20 AX
Push button
No
Washing machine switch
No
Lighting function
Other
HAB
MSC 20A 2-pole screw terminals 2-mod.ultrws
Manufacturer
HAN
077063L
GTIN
3414971575554
Connection type
Screw terminal
Number of modules (for modular construction)
2
Surface finish
Glittering
Operating mode
Rocker/Button
Mounting type
Snap into place
Rated current
20A
Installation depth
32 mm
Color
Suitable for protection class (IP)
IP31
Device width
45 mm
Device height
45 mm
Device depth
44 mm
Halogen free
Yes
Min. depth of the device box
30 mm
With mounting plate
No
Mounting type
Module carrier
Nominal voltage
250V
Surface
Untreated
RAL number (similar)
9003
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Modular device for installation switch programs
