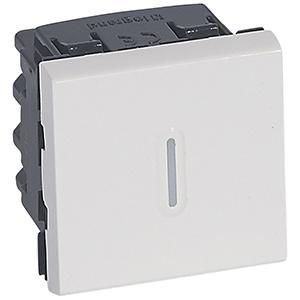

2-module insert with imprint 0/1. For use with LED unit (order no. 0676 64). Color: white
| Property | Value |
| Color: | white |
| Suitable for protection class (IP): | IP41 |
| Circuit type: | Toggle switch |
| Operating type: | Rocker/button |
| Number of rocker switches: | 1 |
| Mounting type: | Module carrier |
| Push button: | no |
| Composition: | Modular device for installation switch programs |
| Mounting type: | snap in |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9003 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 16 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | screw terminal |
| Number of modules (with modular design): | 2 |
| Lighting: | optional |
| Lighting type: | Glow lamp |
| Lighting function: | Control and orientation |
| Rated current: | 16 A |
| Installation depth: | 32 mm |
| Device depth: | 44 mm |
| Device width: | 45 mm |
| Device height: | 45 mm |
| With mounting plate: | no |
| Text field/labeling area: | no |
| Min. depth of the device box: | 30 mm |
Features
Insert Module Type
Light switch covers
HAN
077094
Manufacturer
Color
White
GTIN
3245060770945
Feedback contact
No
Circuit type
Changeover switch
Lighting
Optional
Switching current for fluorescent lamps
16 AX
Push button
No
Washing machine switch
No
Lighting function
Control and orientation
Number of actuating rockers
1
Operating mode
Rocker/Button
Mounting type
Snap into place
Rated current
16A
Installation depth
32 mm
Color
Connection type
Screw terminal
Suitable for protection class (IP)
IP41
Device width
45 mm
Device height
45 mm
Device depth
44 mm
Halogen free
Yes
Min. depth of the device box
30 mm
With mounting plate
No
Mounting type
Module carrier
Nominal voltage
250V
Surface
Untreated
Number of modules (for modular construction)
2
RAL number (similar)
9003
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Modular device for installation switch programs
Surface finish
Glittering
