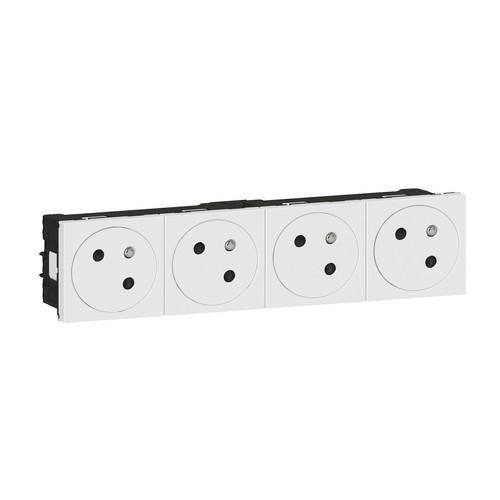

Mosaic Link 4x socket 45° F/B Std, increased contact protection Color: Ultra white
| Property | Value |
| RAL number (similar): | 9003 |
| Number of units: | 4 |
| Color: | white |
| Suitable for protection class (IP): | IP40 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Module carrier |
| Text field/labeling area: | no |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | yes |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Snap-in fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| Number of modules (with modular construction): | 8 |
| Device width: | 180 mm |
| Device height: | 45 mm |
| Device depth: | 40 mm |
| Insulated installation: | no |
| With Loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK07 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 4 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
Insert Module Type
Light switch covers
Color
White
HAB
077144L Mosaic Link 4x 45° F/B ultra white
Manufacturer
HAN
077144L
GTIN
3414971576445
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
4
Number of modules (for modular construction)
8
Number of phases
1
Number of active contacts (approx.)
4
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Snap-on fastening
Color
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP40
Device width
180 mm
Device height
45 mm
Device depth
40 mm
Halogen free
Yes
Insulated installation
No
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Module carrier
Nominal voltage
250V
Rated current
16A
Surface
Untreated
RAL number (similar)
9003
Impact resistance
IK07
Protective contact
Yes
Protective conductor contact round
Yes
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
Yes
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
