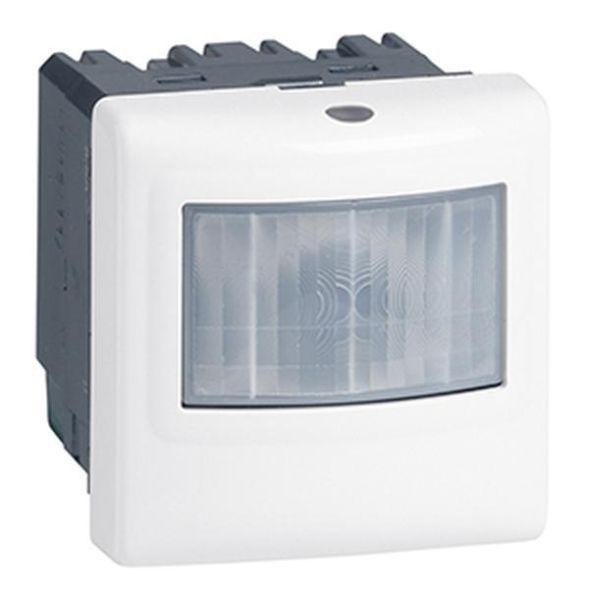

MosaicT motion detector 2000 W, 3-wire connection with neutral conductor (3-wire), passive infrared motion detector for automatic switching of consumers when heat sources (people) are detected within the detection range. Detection range: 180°, detection range: adjustable up to 8 m, brightness threshold: 5 - 1275 lux, switch-off delay: 5 sec. - 30 min., optimal installation height: 1.2 m. Additional operation with conventional break buttons possible. Time and brightness settings using potentiometer, extended settings using remote control Order no. 088230 or 088235
| Property | Value |
| Depth: | 35 mm |
| Width: | 45 mm |
| Height: | 45 mm |
| Design: | Motion detector |
| Color: | white |
| Rated voltage: | 230 V |
| RAL number (similar): | 9003 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 1275 lx |
| Protection class (IP): | IP41 |
| Max. switching capacity: | 1000 W |
| Type of voltage: | AC |
| Max. range to one side: | 4 m |
| Min. Duty cycle: | 5 s |
| Max. duty cycle: | 30 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -5 to 45 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. frontal range: | 10 m |
| Max. Inrush current: | 8.5 A |
| Sensor type: | passive infrared/ultrasonic (dual) |
| Optimal mounting height: | 1.2 m |
| Surface finish: | glossy |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 8 m |
| Control current: | 8.5 mA |
| Horizontal detection angle: | 180 ° |
| Frequency: | 47 to 63 Hz |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| With DALI interface: | no |
| Extension input: | no |
| Connection type: | Screw terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK04 |
| Installation depth: | 35 mm |
Features
Insert Module Type
Light switch covers
Color
White
Bridging switch
No
With signal unit
Yes
Response brightness
5 to 1275 lx
Forced shutdown
No
Max. inrush current
8.5 A
Manufacturer
HAN
078454
GTIN
3245060784546
Dimming function with dimming insert
No
Alarm function
No
Connection type
Screw terminal
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Glittering
Width
45 mm
Installation depth
35 mm
Detection field diameter on floor
8m
Detection angle horizontal
180°
Color
Remote controllable
No
Frequency
47 to 63 Hz
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
45 mm
Constant light control
Yes
Max. duty cycle
30 min
Max. range frontal
10m
Max. range to one side
4m
Max. switching capacity
1000W
Min. duty cycle
5s
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Extension input
No
Nominal voltage
230V
Surface
Untreated
Optimal mounting height
1.2m
RAL number (similar)
9003
Impact resistance
IK04
IP protection)
IP41
Sensor type
Passive infrared/ultrasound (dual)
Voltage type
AC
Teach function for response brightness
No
Temperature
-5 to 45 °C
Depth
35 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Thermoplastic
