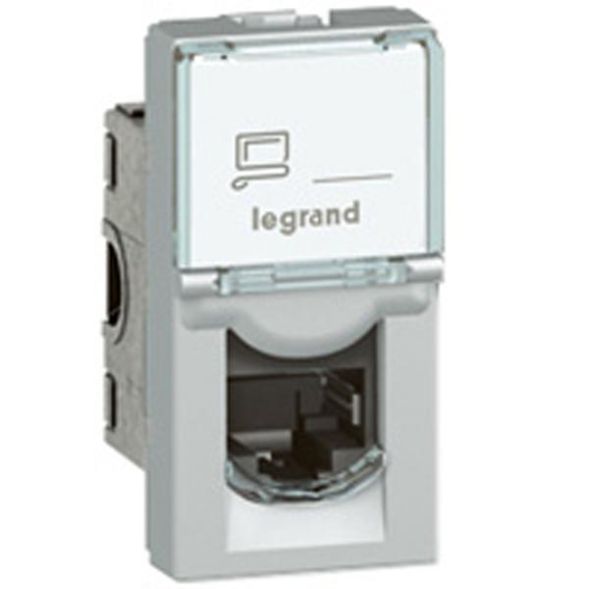

Data socket 1xRJ45 unshielded for the MosaicT switch range, Category 6 UTP, connection type: tool-free, 1-module version, color: aluminum
| Property | Value |
| Category: | 6 |
| Surface-mounted: | no |
| Mounting type: | snap-in |
| Outlet direction: | straight |
| Sockets shielded: | no |
| Duct installation: | yes |
| Connector type: | RJ45 8(8) |
| Suitable for number of sockets/couplings: | 1 |
| Color coding: | yes |
| Connection type: | Insulation displacement terminal IDC |
| Separate earth connection: | no |
| Floor tank/underfloor installation: | yes |
| With text field: | yes |
| Separate Cable strain relief: | no |
| With sockets/couplings: | yes |
| Protection class (IP): | IP20 |
| Color: | Aluminum |
| With dust protection: | yes |
| Mounting type shield connection: | without |
| Composition: | Base element with central cover plate |
| Device width: | 22.5 mm |
| Device height: | 45 mm |
| Device depth: | 33.7 mm |
Features
Insert Module Type
Light switch covers
With text field
Yes
Category
6
Connector type
RJ45 8(8)
Manufacturer
HAN
079461
GTIN
3245060794613
Connection type
Insulation displacement terminal IDC
Outlet direction
Straight
Mounting type
Snap into place
Shielded sockets
No
Color
Suitable for number of sockets/couplings
1
Device width
22.5 mm
Device height
45 mm
Device depth
33.7 mm
With bushings/couplings
Yes
With dust protection
Yes
IP protection)
IP20
Compilation
Base element with central cover plate
