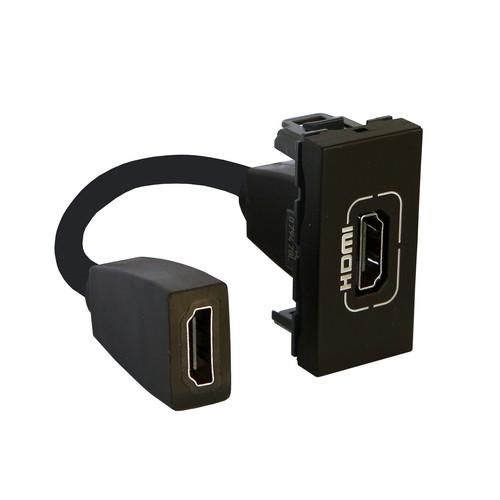

Mosaic HDMI connection unit pre-wired, HDMI 1.4, 1-module, including cable with length: 15 cm, in the color: black
| Property | Value |
| Mounting type: | snap in |
| Color: | black |
| RAL number (similar): | 9004 |
| Device height: | 45 mm |
| Device width: | 22.5 mm |
| Device depth: | 40 mm |
| Labeling field: | without labeling field |
| Use: | HDMI |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | painted |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP40 |
| Composition: | Base element with central cover plate |
| Support ring: | no |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface finish: | matt |
| With strain relief: | no |
| Lamp terminal: | no |
| Number of modules (with modular design): | 1 |
| Transparent: | no |
| Outlet direction: | straight |
| With sockets/couplings: | yes |
| Suitable for number of sockets/couplings: | 1 |
| Sockets shielded: | no |
| Housing shielded: | no |
| Min. Depth of the device box: | 40 mm |
Features
Insert Module Type
Light switch covers
Color
Black
HAB
Mosaic 1.4 prev.1mod incl.cable 15 cm black
Manufacturer
HAN
079478L
GTIN
3414971483330
Number of modules (for modular construction)
1
Surface finish
Frosted
Outlet direction
Straight
Mounting type
Snap into place
Label field
Without label field
Shielded sockets
No
Color
Suitable for number of sockets/couplings
1
Suitable for protection class (IP)
IP40
Housing shielded
No
Device width
22.5 mm
Device height
45 mm
Device depth
40 mm
Halogen free
Yes
Lamp terminal
No
Min. depth of the device box
40 mm
With print
No
With bushings/couplings
Yes
With hinged lid
No
With dust protection
No
With strain relief
No
Mounting type
Flush-mounted
Surface
Painted
RAL number (similar)
9004
Support ring
No
Transparent
No
Use
HDMI
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
