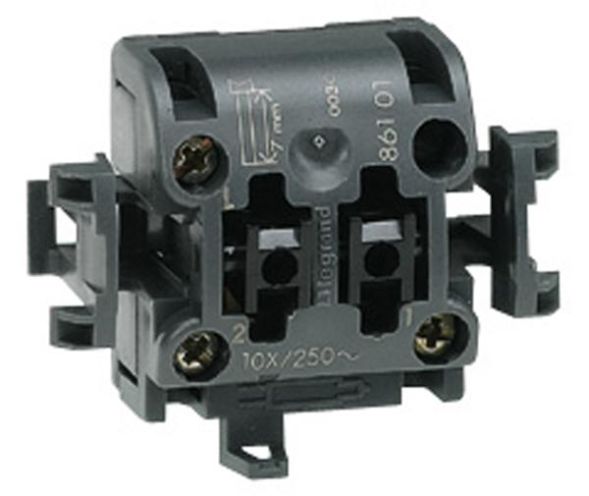

Legrand 086101 Ap insert changeover switch
Property | Value |
Color: | white |
Suitable for protection class (IP): | IP31 |
Circuit type: | Changeover switch |
Operating type: | Rocker/button |
Number of actuating rockers: | 1 |
Mounting type: | Device installation channel |
Push button: | no |
Composition: | Base element with central cover plate |
Mounting type: | other |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen-free: | yes |
Surface: | untreated |
Surface finish: | glossy |
RAL number (similar): | 9003 |
Nominal voltage: | 250 V |
Switching current for fluorescent lamps: | 10 AX |
Feedback contact: | no |
Washing machine switch: | no |
Connection type: | screw terminal |
Number of modules (with modular design): | 2 |
Lighting: | no |
Lighting type: | other |
Lighting function: | other |
Rated current: | 10 A |
Device depth: | 29 mm |
Device width: | 54 mm |
Device height: | 54 mm |
With mounting plate: | no |
Text field/labeling area: | no |
Min. depth of the device box: | 30 mm |
Features
Insert Module Type
Light switch inserts
HAN
086101
Manufacturer
Color
White
GTIN
3245060861018
Feedback contact
No
Circuit type
Changeover switch
Lighting
No
Switching current for fluorescent lamps
10 AX
Push button
No
Washing machine switch
No
Lighting function
Other
Number of actuating rockers
1.0
Operating mode
Rocker/Button
Mounting type
Other
Rated current
10A
Color
Connection type
Screw terminal
Suitable for protection class (IP)
IP31
Device width
54 mm
Device height
54 mm
Device depth
29 mm
Halogen free
Yes
Min. depth of the device box
30 mm
With mounting plate
No
Mounting type
Device installation channel
Nominal voltage
250V
Surface
Untreated
Number of modules (for modular construction)
2.0
RAL number (similar)
9003.0
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
Surface finish
Glittering
