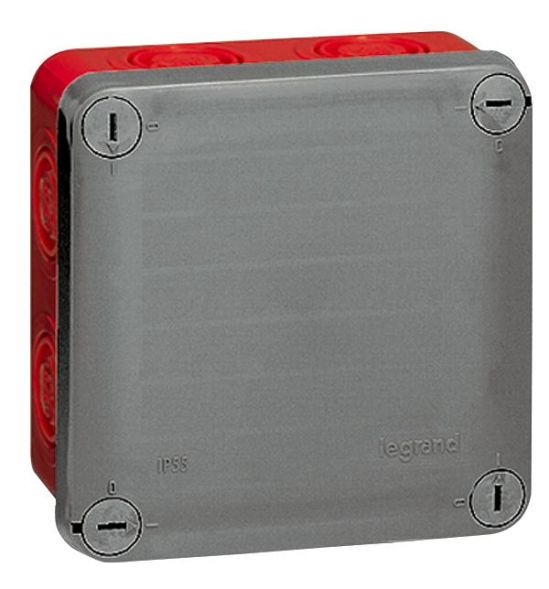

Legrand 092025 Junction box FR FLW 105X105X55 , (red)

Description

Features

Reviews

Junction box Plexo) square junction box cable entry with membrane entry. IP 55 - IK 07 - 960°C Color: red RAL3000/gray RAL7037 Self-extinguishing 960°C For marking emergency lighting circuits in accordance with DIN0108 Temperature resistance: -25°C to +40°C Pre-punched for membrane entries. Tool-free insertion of pipes or cables up to 16mm using membrane technology. Non-losable cover thanks to securing connection between cover and box. From 130 x 130 mm integrated plug fields for terminal blocks. Cover can be closed with quick-release screws by 1/4 turn. From 105 x 105 mm quick-release screws are non-losable. Snap-on lid) Internal dimensions

Property	Value
Width:	121 mm
Length:	121 mm
Depth:	60 mm
Color:	red
Protection class (IP):	IP55
Number of entries:	7
Halogen-free:	yes
Equipment:	without
Mounting type:	universal
Material:	plastic
Cover fastening:	bayonet lock
Sealable:	yes
Can be arranged in rows:	no
Shape:	square
Max. Conductor cross-section:	25 mm²
Type of housing feedthrough:	Step membrane can be cut off
For Ex zone gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound supplied:	no
Potable:	no
For Ex zone dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
For pipe diameter:	25 mm
With shielding:	no
Introduction from the rear:	yes
Weatherproof:	yes
Cover design:	other
Operating temperature:	-25 to 40 °C
