Description

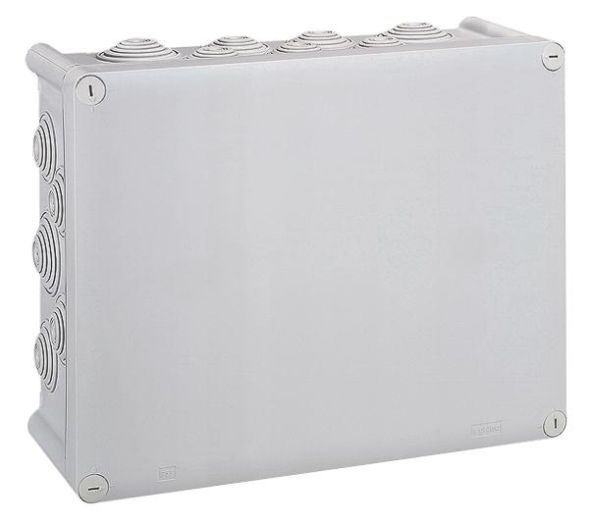

Junction box Plexo) rectangular junction box Cable entry with step or membrane entries IP 55 - IK 07 - 750°C Color: gray RAL7035 Halogen-free Self-extinguishing 650°C Temperature resistance: -25°C to +40°C 4 step or membrane entries. Cable entries interchangeable. Tool-free insertion of pipes or cables up to 16mm using membrane technology. Non-losable cover thanks to securing connection between cover and box. Labeling field on the inside and outside of the cover. From 130 x 130 mm integrated plug fields for terminal strips. Cover can be closed with quick-release screws by 1/4 turn. From 105 x 105 mm quick-release screws cannot be lost. Snap-on lid 18x 32mm, 6x 40mm) Internal dimensions
| Property | Value |
| Width: | 262 mm |
| Length: | 332 mm |
| Depth: | 132 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| Number of entries: | 24 |
| Halogen-free: | yes |
| Equipment: | without |
| Mounting type: | universal |
| Material: | plastic |
| Cover fastening: | bayonet lock |
| Sealable: | no |
| Can be arranged in rows: | no |
| Shape: | rectangular |
| Max. Conductor cross-section: | 32 mm² |
| Type of housing feedthrough: | Step membrane can be cut off |
| For Ex zone gas: | without |
| Functional integrity: | without |
| Explosion-tested version: | no |
| Potting compound supplied: | no |
| Potable: | no |
| For Ex zone dust: | without |
| Installation under water: | no |
| Transparent cover: | no |
| Installation in the ground: | no |
| Surface: | untreated |
| For pipe diameter: | 32 mm |
| With shielding: | no |
| Introduction from the rear: | no |
| Weatherproof: | yes |
| Cover design: | other |
| Operating temperature: | -25 to 40 °C |
Features
Insert Module Type
Light switch covers
Explosion-tested version
No
Manufacturer
HAN
092082
GTIN
3245060920821
Cover design
Other
Width
262 mm
Operating temperature
-25 to 40 °C
Color
Shape
Rectangular
Functional preservation
Without
Halogen free
Yes
Length
332 mm
Mounting type
Universal
Surface
Untreated
IP protection)
IP55
Depth
132 mm
Material
Plastic
