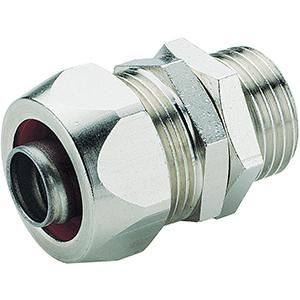

Screw connection M40x1.5, ø-hose inside: 34.5 mm
| Property | Value |
| Protection class (IP) depending on hose: | 65 |
| Nominal diameter: | 40 mm |
| Largest outside diameter of the hose: | 43 mm |
| Smallest inside diameter of the hose: | 35 mm |
| Thread connection size: | M40 x 1.5 |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| Thread length: | 11 mm |
| Rotatable thread: | yes |
| Design: | straight |
| Construction: | external thread |
| One-piece: | no |
| Perm. in combination with protective hose UL: | yes |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -15 to 60 °C |
| Thread type: | metric |
| Number of entries: | 1 |
| With earth connection: | no |
Features
Insert Module Type
Light switch covers
One-piece
No
Smallest inner diameter of the hose
35 mm
Approved in combination with protective hose DIN EN 61386-23
Yes
Protection class (IP) depends on hose
65
With earth connection
No
Manufacturer
HAN
382146
GTIN
8009561205277
Version
Straight
Design
External thread
Rotating thread
Yes
Operating temperature
-15 to 60 °C
Thread connection size
M40x1.5
Thread type
Metric
Thread length
11 mm
Nominal diameter
40 mm
Surface
Nickel-plated
Housing material
Brass
