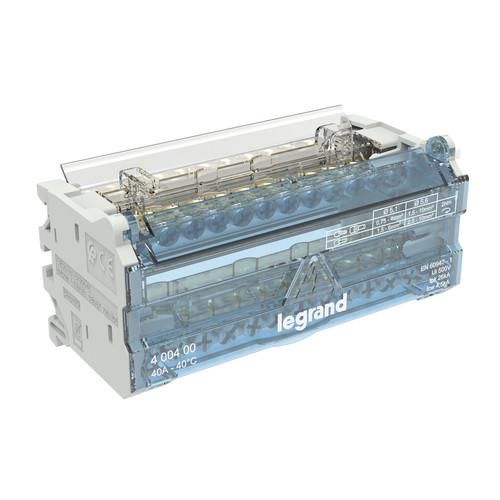

Legrand terminal block, 2-pole, rated current In 40 A, number of terminal points: 13, according to EN 60947-1, insulation voltage Ui 500 V, rated peak withstand current Ipk 26 kA, rated short-time withstand current Icw 4.5 kA, with rear insulation and transparent protective cover at the front, insulation protection between the individual terminal rails, fastening on top hat rail EN 60715. Module width 6 division units.
| Property | Value |
| Number of poles: | 2 |
| Nominal current: | 40 A |
| Width: | 106 mm |
| Height: | 52 mm |
| Depth: | 51 mm |
| Connection type: | screws |
| Mounting type: | DIN rail |
Features
Insert Module Type
Light switch covers
HAB
400400 2P/40A 13KL 6M
Manufacturer
HAN
400400
GTIN
3414971978393
Connection type
Screw
Width
106 mm
Height
52 mm
Mounting type
DIN rail
Rated current
40A
Number of poles
2
Depth
51 mm
