Description

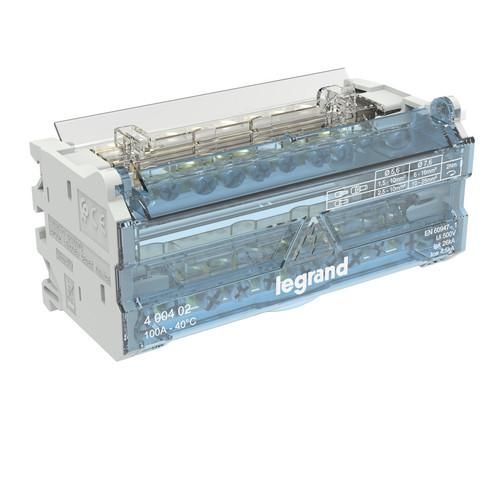

Legrand terminal block, 2-pole, rated current In 100 A, number of terminal points: 11, according to EN 60947-1, insulation voltage Ui 500 V, rated peak withstand current Ipk 26 kA, rated short-time withstand current Icw 4.5 kA, with rear insulation and transparent protective cover at the front, insulation protection between the individual terminal bars, fastening on top-hat rail EN 60715. Module width 6 division units.
| Property | Value |
| Number of poles: | 2 |
| Nominal current: | 100 A |
| Width: | 106 mm |
| Height: | 52 mm |
| Depth: | 51 mm |
| Connection type: | screws |
| Mounting type: | DIN rail |
Features
Insert Module Type
Light switch covers
HAB
400402 2P/100A 11KL 6M
Manufacturer
HAN
400402
GTIN
3414971978454
Connection type
Screw
Width
106 mm
Height
52 mm
Mounting type
DIN rail
Rated current
100A
Number of poles
2
Depth
51 mm
