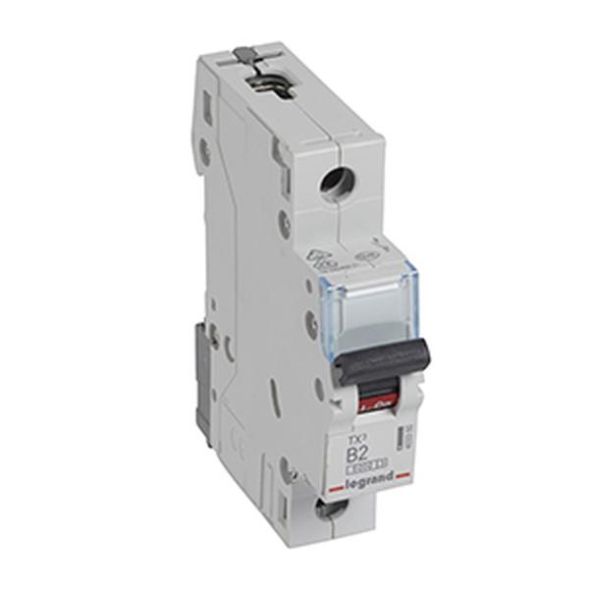

Legrand miniature circuit breaker TX3 according to EN 60898-1,0641-11, EN 60947-2, 1-pole, B characteristic, rated current In 2 A, rated switching capacity Icn 6 kA according to EN 60898-1, rated voltage Un 230/400 VAC, rated frequency 50/60 Hz, energy limitation class 3, fastening on top hat rail EN 60715 by means of a snap-in quick fastening, clear information on the front of each device, clear switch position indicator red/green on the switch lever, with labeling window, with protection against misplacement for safe insertion of the conductor into the elevator terminal, attachment of auxiliary devices possible. Circuit breakers with B characteristics are primarily intended for line protection in light and socket circuits.
| Property | Value |
| Triggering characteristic: | B |
| Rated current: | 2 A |
| Rated voltage: | 230 V |
| Type of voltage: | AC |
| Frequency: | 50 to 60 Hz |
| Width in pitch units: | 1 |
| Number of poles (total): | 1 |
| Energy limitation class: | 3 |
| Additional equipment possible: | yes |
| Installation depth: | 44 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Pollution degree: | 2 |
| Switching neutral conductor: | no |
| Number of protected poles: | 1 |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
403350
GTIN
3414970386090
Number of protected poles
1
Trigger characteristics
B
Rated insulation voltage Ui
500V
Rated switching capacity Icn according to EN 60898 at 230 V
6kA
Rated voltage
230V
Rated impulse withstand voltage Uimp
4kV
Rated current
2 A
Width in pitch units
1
Installation depth
44 mm
Energy limitation class
3
Frequency
50 to 60 Hz
Switching neutral conductor
No
Number of poles (total)
1
IP protection)
IP20
Voltage type
AC
Degree of contamination
2
Additional equipment possible
Yes
