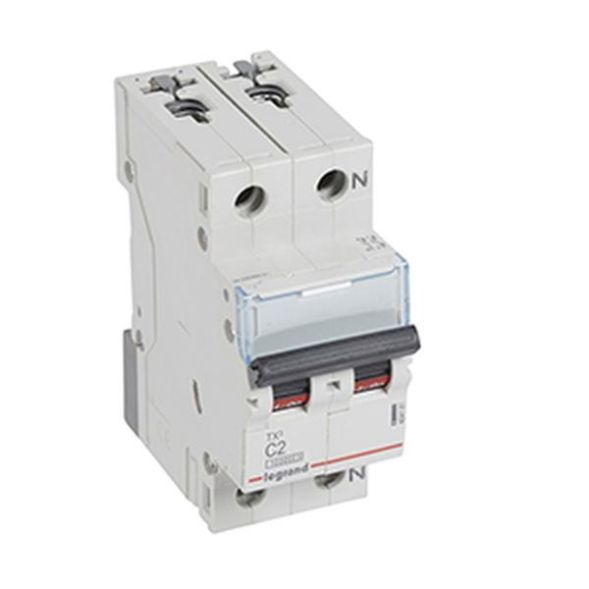

The C characteristic curve is intended for line protection in devices with high inrush currents (e.g. motors and transformers). According to EN 60898-1,0641-11, EN 60947-2, Technical data: Rated voltage 230 V, 50/60 Hz, Rated switching capacity 10 kA according to EN 60898-1, Energy limitation class 3, Fastening on top hat rail EN 60715 by means of snap-on fastening, clear information on the front of each device, clear switch position indicator red/green on the switch lever (lockable), with label window, with protection against misplacement for safe insertion of the conductor into the elevator terminal, attachment of auxiliary devices possible.
| Property | Value |
| Trip characteristic: | C |
| Rated current: | 2 A |
| Rated voltage: | 230 V |
| Type of voltage: | AC |
| Frequency: | 50 to 60 Hz |
| Width in modular spacing: | 2 |
| Number of poles (total): | 2 |
| Energy limitation class: | 3 |
| Additional equipment possible: | yes |
| Installation depth: | 44 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icn according to EN 60898 at 230 V: | 10 kA |
| Pollution degree: | 2 |
| Switching neutral conductor: | yes |
| Number of protected poles: | 1 |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
404181
GTIN
3414970393692
Number of protected poles
1
Trigger characteristics
C
Rated insulation voltage Ui
500V
Rated switching capacity Icn according to EN 60898 at 230 V
10kA
Rated voltage
230V
Rated impulse withstand voltage Uimp
4kV
Rated current
2 A
Width in pitch units
2
Installation depth
44 mm
Energy limitation class
3
Frequency
50 to 60 Hz
Switching neutral conductor
Yes
Number of poles (total)
2
IP protection)
IP20
Voltage type
AC
Degree of contamination
2
Additional equipment possible
Yes
