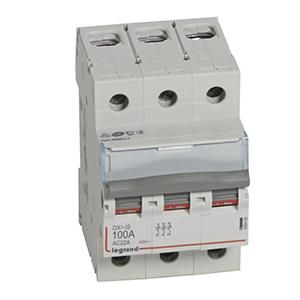

Legrand load-break switch DX3, 3-pole, 100A 400 VAC, in accordance with EN 60947-3, EN 60669-2-4. Utilization category AC-22A. Fastening to top-hat rail EN 60715 using quick-locking fasteners, clear information on the front of each device, clear red/green switch position indicator on the switch lever (lockable), with labeling window, single-pole busbar mounting using Legrand pin comb bars, attachment of auxiliary devices possible.
| Property | Value |
| Number of poles: | 3 |
| Rated continuous current Iu: | 100 A |
| Max. Rated operating voltage Ue at AC: | 400 V |
| Design as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | Screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | Toggle |
| Suitable for floor mounting: | no |
| Conditional Rated short-circuit current Iq: | 4500 kA |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as Main switch: | yes |
| Designed as safety switch: | yes |
| Motor drive optional: | no |
| Lockable: | yes |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
406469
GTIN
3245064064699
Connection type main circuit
Screw connection
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
Yes
Designed as a maintenance/repair switch
No
Design of the actuating element
Gag
Conditional rated short-circuit current Iq
4500kA
Rated continuous current Iu
100A
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
No
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
400V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Protection class (IP), front
IP20
Lockable
Yes
