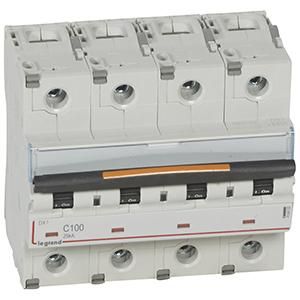

Legrand miniature circuit breaker DX3 according to EN 60947-2, 4-pole, C characteristic, rated current In 100 A, rated switching capacity 25 kA according to EN 60947-2, rated voltage Un 400 VAC, rated frequency 50/60 Hz, fastening on top hat rail EN 60715 using two snap-in quick fasteners, clear information on the front of each device, clear switch position indicator red/green, with labeling window, with protection against misplacement for safe insertion of the conductor into the elevator terminal, attachment of auxiliary devices possible. Circuit breakers with C characteristics are intended for line protection in devices with high inrush currents (e.g. motors and transformers).
| Property | Value |
| Tripping characteristic: | C |
| Rated current: | 100 A |
| Rated voltage: | 400 V |
| Type of voltage: | AC |
| Frequency: | 50 to 60 Hz |
| Width in pitch units: | 6 |
| Number of poles (total): | 4 |
| Additional equipment possible: | yes |
| Installation depth: | 47 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icu according to IEC 60947-2 at 230 V: | 50 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 400 V: | 25 kA |
| Pollution level: | 3 |
| Switching neutral conductor: | yes |
| Number of protected poles: | 4 |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Ambient temperature during operation: | -25 to 70 °C |
| Connectable conductor cross-section, stranded: | 6 to 50 mm² |
| Connectable conductor cross-section, single-wire: | 6 to 70 mm² |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
409802
GTIN
3245064098021
Connectable conductor cross-section solid
6 to 70 mm²
Connectable conductor cross-section stranded
6 to 50 mm²
Number of protected poles
4
Trigger characteristics
C
Rated insulation voltage Ui
500V
Rated switching capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated voltage
400V
Rated impulse withstand voltage Uimp
6kV
Rated current
100A
Width in pitch units
6
Installation depth
47 mm
Frequency
50 to 60 Hz
Switching neutral conductor
Yes
Number of poles (total)
4
IP protection)
IP20
Voltage type
AC
Ambient temperature during operation
-25 to 70 °C
Degree of contamination
3
Additional equipment possible
Yes
